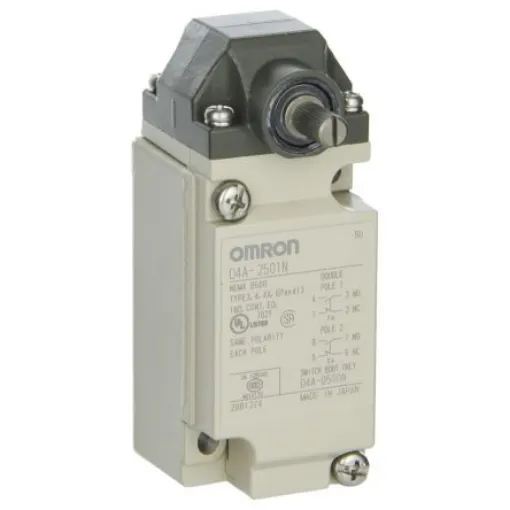

Omron Roller Lever Limit Switch, 2NO/2NC, IP67, DPDT, 600V ac Max, 5A Max - D4A-2501-N
Reliable Omron Roller Lever Limit Switch with IP67 rating for enhanced durability.
Manufacturer part number: D4A-2501-N
GTIN: 4536853201401
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Roller Lever
Pole and Throw Configuration = DPDT
Normal State Configuration = 2NO/2NC
IP Rating = IP67
Maximum Current = 5A
Maximum AC Voltage = 600V
Maximum DC Voltage = 250V
Connection Type = G1/2
Action Type = Snap Action
Length = 75.5mm
Minimum Operating Temperature = -40°C
Mounting Orientation = Back, FrontOperations
UL, CSA and CCC. D4A- N General Purpose Limit Switch. A limit switch with better seal, shock resistance and strength. A double seal on the head, a complete gasket cover, and other features ensure a better seal (meets UL NEMA 3, 4, 4X, 6P, 12, 13) Wide standard operating temperature range: -40 °C to +100 °C (standard type) Models with fluoro-rubber available for greater resistance to chemicals Block mounting method also reduces downtime for maintenance DPDT, double-break models available for complex operations Complete limit switch consists of several parts (receptacle, switch Box, head and lever) which must be ordered separately
