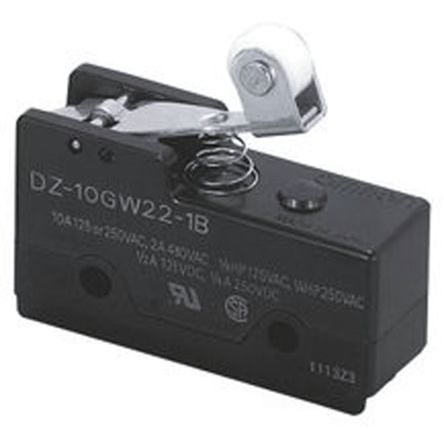

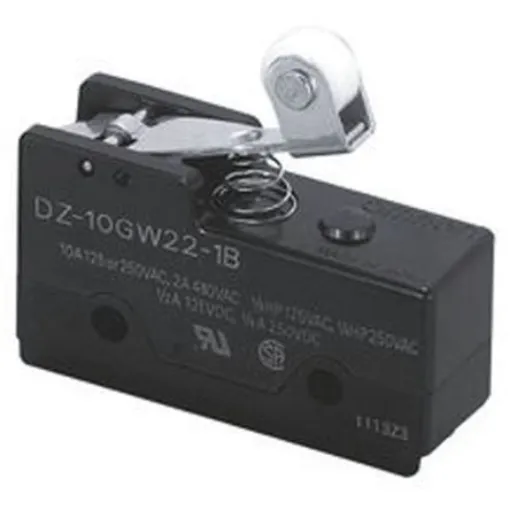

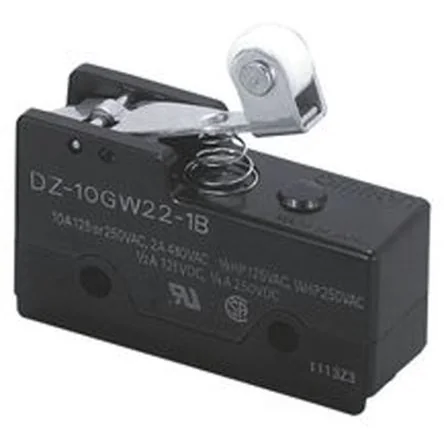

Omron Lever Limit Switch, 2NO/2NC, IP00, DPDT, 250V ac Max, 10A Max - DZ-10GW22-1B6
Reliable Omron Lever Limit Switch for efficient circuit control with dual functionality.
Manufacturer part number: DZ-10GW22-1B6
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Lever
Pole and Throw Configuration = DPDT
Normal State Configuration = 2NO/2NC
IP Rating = IP00
Maximum Current = 10A
Maximum AC Voltage = 250V
Maximum DC Voltage = 250V
Connection Type = Screw
Action Type = Snap Action
Length = 49.2mm
Minimum Operating Temperature = -25°C
Mounting Orientation = ScrewOperations
DZ Special-purpose Basic Switch. The DZ series limit switches have a DPDT basic switch for two independent circuit controls. They incorporates two completely independent built-in switches and are ideal for switching circuits on two different voltages of for controlling two independent circuits. They are also interchangeable with Omron Z basic switches, as both switches are identical in mounting hole dimensions, mounting pitch and pin plunger position. Contact rated for a wide range of voltages Contact current rating: 10A at 250 Vac Operating temperature Range: -25 to +80 °C (with no icing) Mechanical service life: 1,000,000 operations minimum Electrical service life: 500,000 operations minimum
