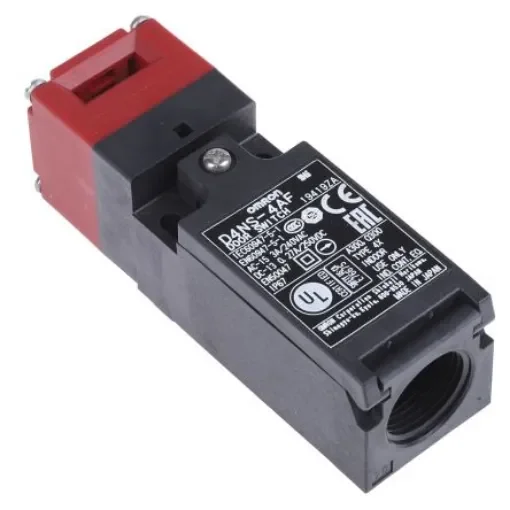

Omron D4NS Series Safety Interlock Switch, 1NC/1NO - D4NS-4AF
The Omron D4NS Safety Interlock Switch ensures reliable operation with its 1NC/1NO configuration.
Manufacturer part number: D4NS-4AF
GTIN: 4536854963667
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Series = D4NS
Normal State Configuration = 1NC/1NO
Housing Material = Plastic
IP Rating = IP67
Maximum AC Voltage = 240V ac
Length = 96mm
Omron Safety Door SwitchThe Omron D4NS series door switch has 1NC/1NO switch configuration. It is a labour saving and environmentally friendly safety door switch. It has a separate actuator and make-before-break contacts (MBB). The housing material is plastic and it is available in a screw connection type.Features and BenefitsConnector size is M20 (1-conduit) Standardised gold-clad contacts for high contact reliability Applicable to both standard loads and micro loads Environment friendly - Free of lead, cadmium, and hexavalent chrome Conforms to the machinery directive and low voltage directiveApplicationsSliding Hinged Removable guardsCertificationsEN60947-5-1 UL508 CSA C22.2 No.14 GS-ET-15 GB14048.5 EN50047 EN1088 TUV certified CCC certified IP67 rated
