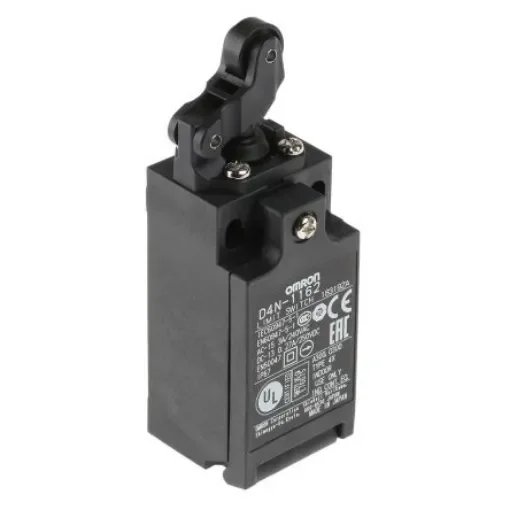

Omron D4N Series Roller Plunger Interlock Switch, NO/NC, IP67, SPDT, Plastic Housing - D4N-1162

Actuator Type = Roller Plunger
Pole and Throw Configuration = SPDT
Normal State Configuration = NO/NC
IP Rating = IP67
Housing Material = Plastic
Connection Type = PG13.5
Series = D4N
Action Type = Snap Action
Length = 83.6mm
Maximum Operating Temperature = +70°C
Mounting Orientation = HorizontalCycles

Omron Limit SwitchThe Omron D4N series snap action limit switch has 1NC/1NO contact configuration and a one-way roller lever actuator. It has a screw connection and 1-conduit connection. The standardized gold-clad contacts provide high contact reliability.Features and BenefitsContact rating is 10A continuous Free of lead, cadmium and hexavalent chrome, reducing the burden on the environment Built-in switch mechanism Minimum mechanical life of 15000000 cycles Head may be located in choice of 4 positions Operating temperature ranges between -30°C and 70°CCertificationsIP67 rated TUV EN60947-5-1 UL508 CSA C22.2 No.14 CCC certified GB14048.5 EN50047 EN1088
