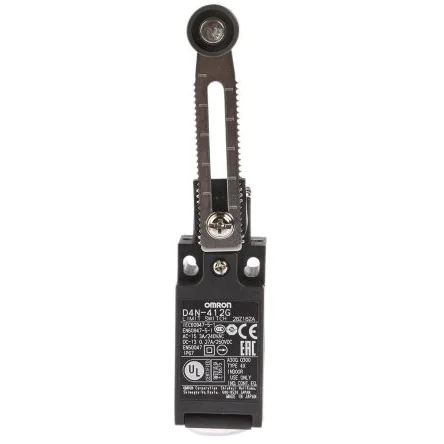

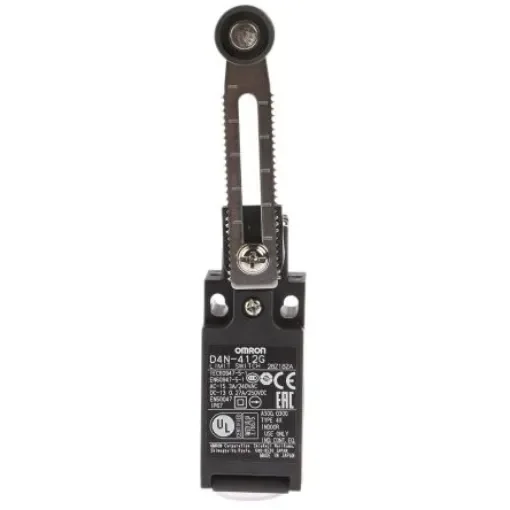

Omron D4N Series Adjustable Roller Lever Limit Switch, 1NC/1NO, DPST, Plastic Housing - D4N-412G

Actuator Type = Adjustable Roller Lever
Pole and Throw Configuration = DPST
Normal State Configuration = 1NC/1NO
Housing Material = Plastic
Connection Type = M20
Series = D4N
Action Type = Snap Action
Length = 64mm
Width = 31mm
Mechanical Life = 15000000Cycles

Omron Limit SwitchThe Omron D4N series snap action limit switch has 1NC/1NO contact configuration and an adjustable roller lever actuator. It has a screw connection and 1-conduit M20 connection. The standardized gold-clad contacts provide high contact reliability.Features and BenefitsContact rating is 10A continuous Free of lead, cadmium and hexavalent chrome, reducing the burden on the environment Built-in switch mechanism Minimum mechanical life of 15000000 cycles Head may be located in choice of 4 positions It has a form lock Operating temperature ranges between -30°C and 70°CCertificationsIP67 rated TUV EN60947-5-1 UL508 CSA C22.2 No.14 CCC certified GB14048.5 EN50047 EN1088
