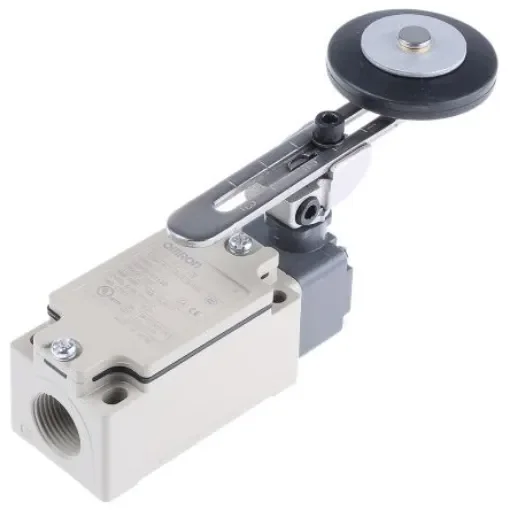

Omron D4B-N Series Roller Lever Interlock Switch, NO/NC, IP67, DPST, Die Cast Aluminium Housing - D4B-4113N

Actuator Type = Roller Lever
Pole and Throw Configuration = DPST
Normal State Configuration = NO/NC
IP Rating = IP67
Housing Material = Die Cast Aluminium
Connection Type = M20
Series = D4B-N
Length = 99.5mm
Depth = 56mm
Mechanical Life = 30000000Cycles

Omron Limit SwitchThe Omron D4B-N series snap action limit switch has 1NO/1NC contact configuration and a resin roller lever actuator. It has a screw connection and 1x M20 connection. This switch is equipped with a mechanism that indicates the applicable operating zone, as well as push-button switching to control left and right motion. The housing is made of metal.Features and BenefitsContact rating is 10A continuous Direct opening mechanism Accurate switching with safe operation via direct drive positive contact opening even with metal deposition between the mating contacts Head seal structure strengthened to improve seal properties 4-position turret head Operating temperature ranges between -40°C to 80°C Minimum mechanical life of 30000000 cyclesCertificationsEN50041 EN60204-1 EN1088 UL508 CSAC22.2 No. 14 CQC certified GB14048.5 EN60947-5-1
