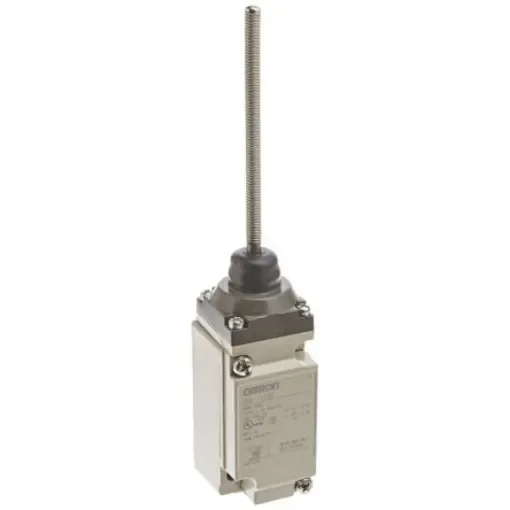

Omron Coil Spring Limit Switch, NO/NC, IP67, SPDT, 600V ac Max, 10A Max - D4A-1116-N

Actuator Type = Coil Spring
Pole and Throw Configuration = SPDT
Maximum AC Voltage = 600V
Maximum DC Voltage = 250V
Connection Type = 1/2 in NPT
Action Type = Snap Action
Minimum Operating Temperature = -20°C
Mounting Orientation = Back, FrontOperations

UL, CSA and CCC. D4A- N General Purpose Limit Switch. A limit switch with better seal, shock resistance and strength. A double seal on the head, a complete gasket cover, and other features ensure a better seal (meets UL NEMA 3, 4, 4X, 6P, 12, 13) Wide standard operating temperature range: -40 °C to +100 °C (standard type) Models with fluoro-rubber available for greater resistance to chemicals Block mounting method also reduces downtime for maintenance DPDT, double-break models available for complex operations Complete limit switch consists of several parts (receptacle, switch Box, head and lever) which must be ordered separately
