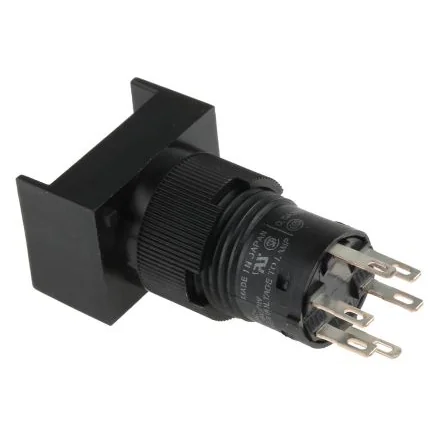

Omron A3C Series Illuminated Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, 250V ac, IP40 - A3CJ-7011

Illuminated = Yes
Panel Cut Out Diameter = 12mm
Mounting Type = Panel Mount
Contact Configuration = SPST
Voltage Rating = 250V ac
Push Button Style = Rectangular
IP Rating = IP40
Contact Current Rating = 500 mA @ 250 V ac
Manufacturer Part No. = A3CJ-7011

UL, CSA. Panel Mounting Illuminated Switches and Indicators. Each switch has two sets of SPST contacts, one normally open and one normally closed, permitting a wide variety of switching functions to be carried out A complete assembly requires a switch unit (or indicator), a lens and a lamp, each of which must be ordered separately The lenses contain a removable legend plate, which may be marked by the user Lamps can be changed from front of panel Matching indicators
