Omron A22E Series Twist Release Emergency Stop Push Button, Panel Mount, SPDT, IP65 - A22E-M-11B

Mounting Type = Panel Mount
Contact Configuration = SPDT
Push Button Actuation = Twist Release
Series = A22E
IP Rating = IP65
Colour = Red
Push Button Shape = Round
Auxiliary Contacts = NO
Pole and Throw Configuration = SPST

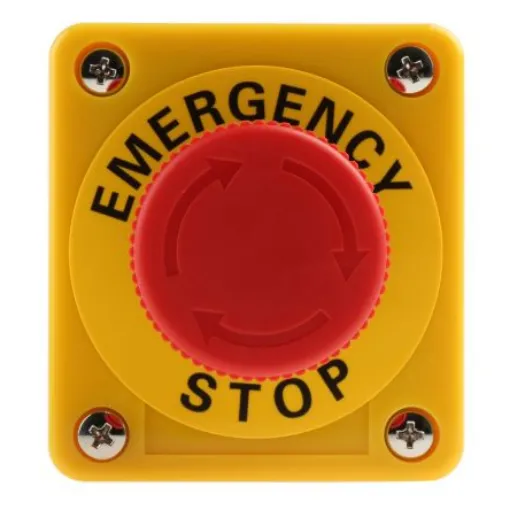

Omron Emergency Stop PushbuttonThe Omron A22E series emergency stop pushbutton switch has a red round style head with the diameter of 40mm. It has a double pole single throw (DPST) contact configuration. This button is supplied as a complete or sub-assembled unit and can easily be mounted without using tools. A lock plate is provided as a standard feature to ensure that the control box and switch are not easily separated. The pushbutton is made from the plastic material. It has a current rating of 10A and voltage rating of 440VAC.Features and Benefits1NC/1NO contact configuration Twist to reset method Non-illuminated Direct opening mechanism to open the circuit when the contact welds Safety lock mechanism prevents operating errors Easy mounting and removal of switch blocks using a lever Mount three switch units in series to improve wiring efficiency (with non-lighted switch units, three units can be mounted for multiple contacts) Finger protection mechanism on the switch unit provided as a standard feature Installed using either round or forked crimp terminalsCertificationsIP65 rated UL508 C22.2 No.14 EN60947-5-1 EN60947-5-5 GB14048.5 EN60947-5-1. TUV approved CCC certified
