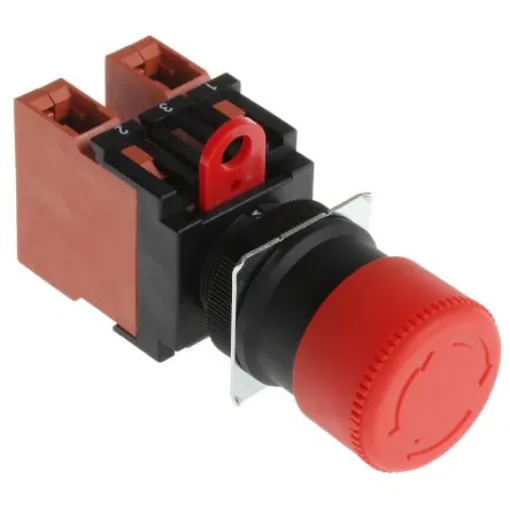

Omron A22E Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NC, IP65 - A22E-S-02

Omron Emergency Stop PushbuttonThe Omron A22E series emergency stop pushbutton switch has a red round style head with the diameter of 30mm. It has a double pole single throw (DPST) contact configuration. This button is supplied as a complete or sub-assembled unit and can easily be mounted without using tools. A lock plate is provided as a standard feature to ensure that the control box and switch are not easily separated. The pushbutton is made from the plastic material. It has a current rating of 10A and a voltage rating of 440VAC.Features and Benefits2NC contact configuration Twist to reset method Non-illuminated Direct opening mechanism to open the circuit when the contact welds Safety lock mechanism prevents operating errors Easy mounting and removal of switch blocks using a lever Mount three switch units in series to improve wiring efficiency (with non-lighted switch units, three units can be mounted for multiple contacts) Finger protection mechanism on the switch unit is provided as a standard feature Installed using either round or forked crimp terminalsCertificationsIP65 rated UL508 C22.2 No.14 EN60947-5-1 EN60947-5-5 GB14048.5 EN60947-5-1. TUV approved CCC certified UL approved
