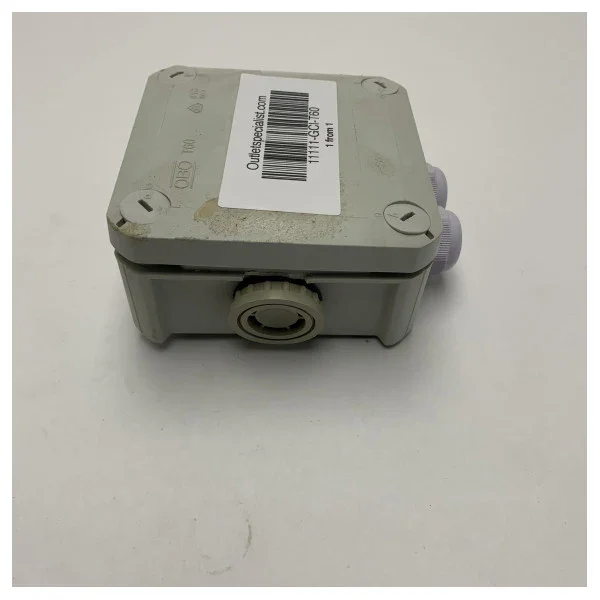

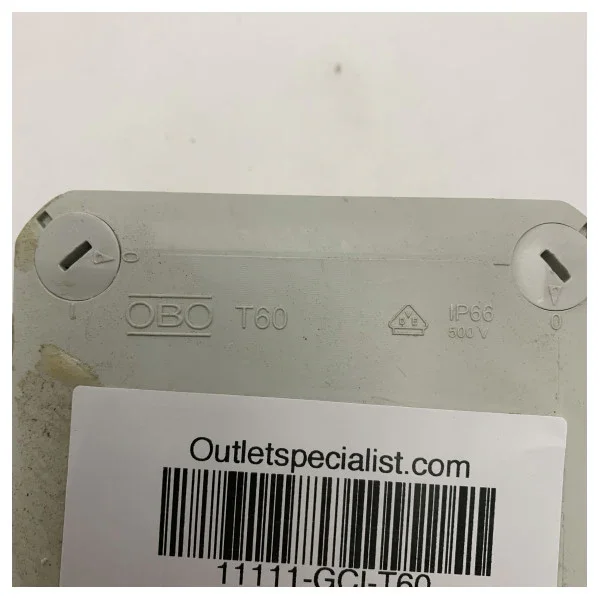

OBO Fire Bell T60 Waterproof Junction Box IP66
The OBO Fire Bell T60 is a high-quality junction box specifically designed for environments where maximum protection against water and dust is essential. Thanks to its robust construction and IP66 certification, this junction box is particularly suitable for maritime applications, humid industrial spaces, and complex electrical installations.
Reliable protection in extreme conditions
In electrical installations on ships or outdoors, the safety of the connections is crucial. The T60 series from OBO offers an impact-resistant housing that can withstand heavy mechanical stress. The design ensures that cables can be easily and safely passed through, while the sealing guarantees long-lasting waterproofness.
Key features and benefits
- Maximum Waterproofness: The IP66 classification provides complete protection against powerful water jets and dust ingress.
- Maritime Quality: Specially developed for use on ships and in coastal areas where salty air and moisture play a role.
- Durable Material: Made from halogen-free plastic that is not only safe in case of fire but also resistant to UV radiation.
- Flexible Installation: The junction box is equipped with outlet openings that facilitate the connection of different cable diameters.
- Fire-safe Design: Part of the Fire Bell series, which provides extra security for critical infrastructure.
Technical specifications
- Product type: Junction Box / Connection Box
- Model: OBO Bettermann T60
- Protection class: IP66
- Material: Polypropylene (glass fibre reinforced)
- Colour: Light grey (RAL 7035)
- Nominal voltage: 500 Volts
- Number of entries: 7 openings with threads
- Dimensions: 114 x 114 x 57 millimetres
- Temperature range: -5 to +60 degrees Celsius
- Features: Halogen-free and impact-resistant
