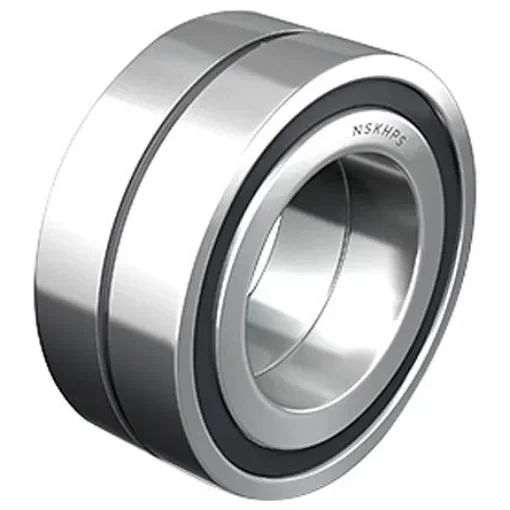

NSK BSN4090DDUHP2B R BE4L5 Single Row Angular Contact Ball Bearing- Both Sides Sealed 40mm I.D, 90mm O.D - BSN4090DDUHP2B R BE4L5

Inside Diameter = 40mm
Outside Diameter = 90mm
Race Width = 46mm
Ball Bearing Type = Single Row Angular Contact Ball Bearing
Sealing Arrangement = Both Sides Sealed
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Steel
Number of Rows = 2
Static Load Rating = 135kN
Dynamic Load Rating = 75kN
Bore Type = Parallel
Partial Bearing Code = BSN4090DDUHP2B

Ball Screw Support Bearings - BSN Series. The BSN series of ball screw support bearings are double row, angular contact thrust ball bearings, with a 60° contact angle. They are equivalent to two single row bearings in a back-to-back arrangement, with a single outer ring. Bearings are supplied ready to be mounted. They come greased with long life lithium soap grease, with synthetic hydrocarbon base oil. Under normal operating conditions, the bearings are greased for life. A relubrication groove on the outside surface of the outer ring allows the bearings to be relubricated during operation if necessary. The bearings are sealed on both sides. The low friction contact lip seal runs in a grove in the inner ring giving excellent sealing characteristics, while minimising torque and heat generation. Preload is set during manufacture so that the correct loading is achieved when the lock nut is tightened to the recommended torque. BSN-DT Series. The matched DT pairs are essentially the same as the individual bearings. The two individual bearings have been matched together in the paired version. Both bearings have a V-shaped mark on the outer diameter to ensure that they are arranged correctly. Features and Benefits. 60° Contact angle enabling the bearings to support large axial forces Double row to support axial force in two directions Contact lip seal provides excellent sealing with low friction and heat generation Greased for life (under normal operating conditions). Product Application Information. Ideal for use in machine tools.
