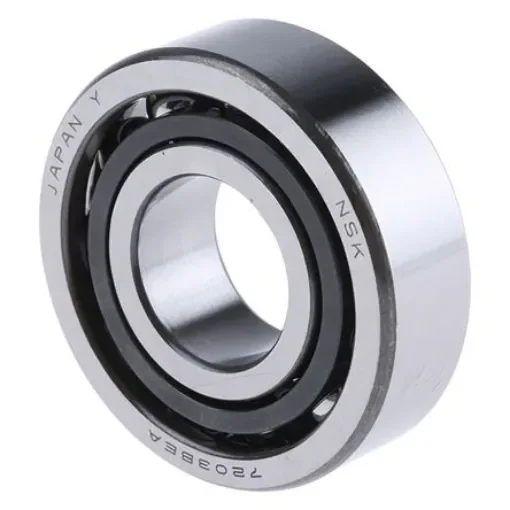

NSK 7203BEAT85 Single Row Angular Contact Ball Bearing- Open Type 17mm I.D, 40mm O.D

Inside Diameter = 17mm
Outside Diameter = 40mm
Race Width = 12mm
Ball Bearing Type = Single Row Angular Contact Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Polyamide
Number of Rows = 1
Static Load Rating = 6.1kN
Dynamic Load Rating = 11.6kN
Bore Type = Parallel
Bearing Series = 2 Light
Partial Bearing Code = 7203

These single row angular-contact ball bearings can only accept axial loads in one direction. The bearings must therefore be mounted against a second angular-contact bearing or a conventional bearing. Single Row Angular Contact Bearing. Bearings designed for use where high axial loads exist and where axial positional control is required. The metric series have a 40° contact angle and a polyamide cage The imperial series have a 20° contact angle and a machined brass cage
