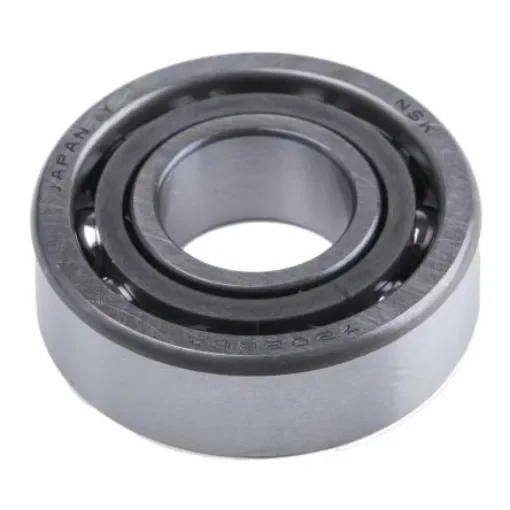

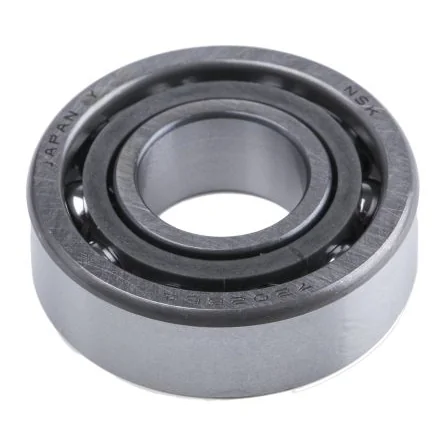

NSK 7202BEAT85 Single Row Angular Contact Ball Bearing- Open Type 15mm I.D, 35mm O.D

Inside Diameter = 15mm
Outside Diameter = 35mm
Race Width = 11mm
Ball Bearing Type = Single Row Angular Contact Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Polyamide
Number of Rows = 1
Static Load Rating = 4.8kN
Dynamic Load Rating = 9.8kN
Bore Type = Parallel
Bearing Series = 2 Light
Partial Bearing Code = 7202

These single row angular-contact ball bearings can only accept axial loads in one direction. The bearings must therefore be mounted against a second angular-contact bearing or a conventional bearing. Single Row Angular Contact Bearing. Bearings designed for use where high axial loads exist and where axial positional control is required. The metric series have a 40° contact angle and a polyamide cage The imperial series have a 20° contact angle and a machined brass cage
