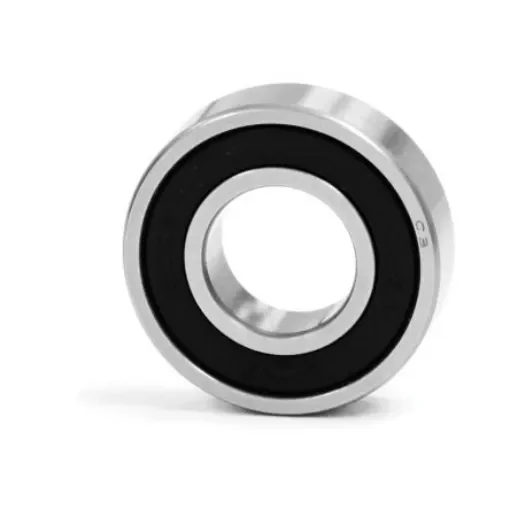

NSK 6306VVCM Single Row Deep Groove Ball Bearing- Non Contact Seals On Both Sides 30mm I.D, 72mm O.D

Inside Diameter = 30mm
Outside Diameter = 72mm
Race Width = 19mm
Ball Bearing Type = Single Row Deep Groove Ball Bearing
Sealing Arrangement = Non Contact Seals On Both Sides
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Steel
Number of Rows = 1
Static Load Rating = 15kN
Dynamic Load Rating = 26.7kN
Bore Type = Parallel
Bearing Series = 3 Medium
Partial Bearing Code = 6306

NSK special deep groove ball bearings: these ball bearings are designed with various different features and characteristics depending. Whether it be the adaptation of a standard bearing or a completely new development of a bearing – every solution is implemented with NSK’s guarantee of quality.Excellent resistance to oxidation, heat, rust and water Excellent high temperature performance due to special sealing materials Low noise levels Stronger outer ring with special profile or with flange for mounting Use of high temperature grease Offers long-life lubrication, even at high temperatures Low frictional torque as a result of the use of a labyrinth seal Minimum grease leakage and minimum corrosion in damp environments Other bearing variants available on request: Outer and inner ring: diameter, width, threads etc. Contour options: crowned, gothic etc. Special seals Mechanical engineering High Speed High Temperature Low Noise Agriculture Food and Beverage
