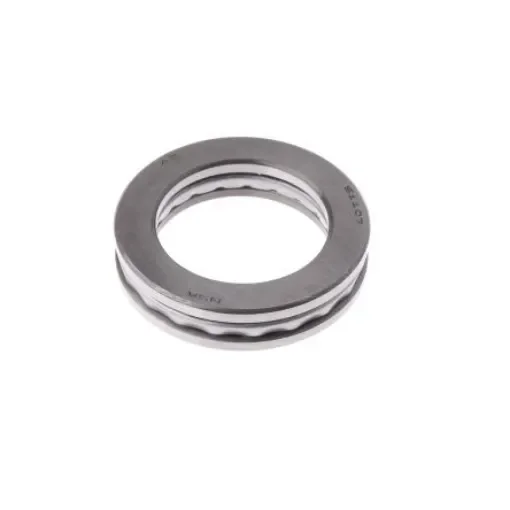

NSK 51107 Thrust Ball Bearing- Open Type 35mm I.D, 52mm O.D

Inside Diameter = 35mm
Outside Diameter = 52mm
Race Width = 12mm
Ball Bearing Type = Thrust Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Steel
Number of Rows = 1
Static Load Rating = 48.5kN
Dynamic Load Rating = 22.1kN
Bore Type = Parallel
Bearing Series = 1 Extra Light Thrust
Partial Bearing Code = 51107

Metric Steel Ball Thrust Bearing. NSK ‘s range of thrust bearings are suitable for unidirectional axial loads. Supplied as three-part assemblies, these thrust bearings comprise of two grooved outer raceways and a caged ball set. These bearings are not suitable for radial loads. Trying to apply and sustain any radial load on a thrust bearing can risk misalignment and damage. Thrust bearings can be found in a variety of industries such as aerospace, marine and automotive with applications like vertical shaft bearings and steering columns. Commonly found in car gearboxes and clutches, thrust bearings can help to reduce loads as well as help to reduce noise.
