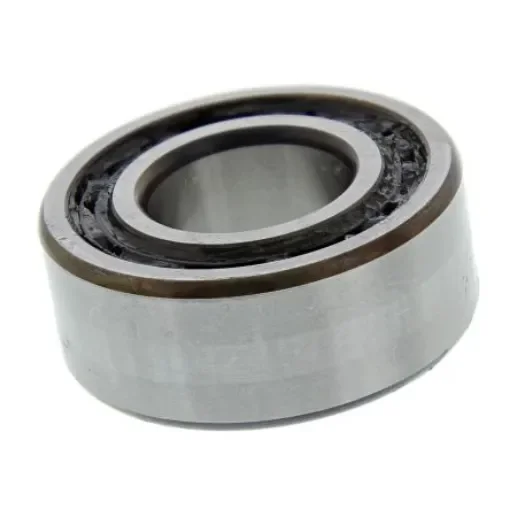

NSK 3205BTNG Double Row Angular Contact Ball Bearing- Open Type 25mm I.D, 52mm O.D

Inside Diameter = 25mm
Outside Diameter = 52mm
Race Width = 20.6mm
Ball Bearing Type = Double Row Angular Contact Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Polyamide
Number of Rows = 2
Static Load Rating = 14.6kN
Dynamic Load Rating = 21.2kN
Bore Type = Parallel
Bearing Series = 2 Light
Partial Bearing Code = 3205

Instruction leaflet. Double Row Ball Bearings. Designed for greater dynamic and static load rating capacity than the single row version, and are very often used instead of a pair of single row angular contact bearings where assembly of the latter could be difficult and where there is a need to minimise tilt 25° contact angle
