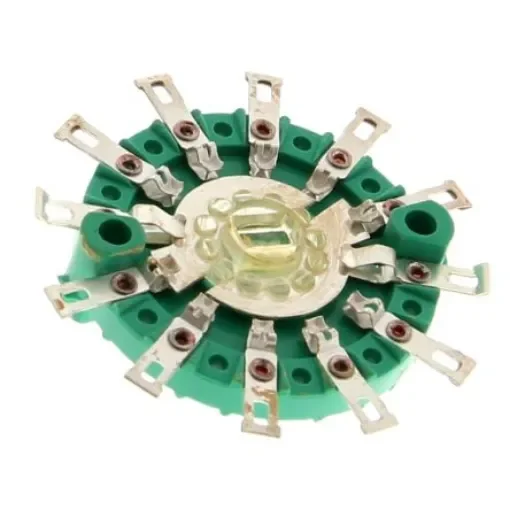

NSF Rotary Switch Wafer 5-Position - 457847MA
The NSF Rotary Switch Wafer offers 5 positions and a 300V rating for reliable performance.
Manufacturer part number: 457847MA
GTIN: 5059045322832
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Diameter = 25.4mm
Number of Switch Positions = 5
Voltage Rating = 300V ac/dc
Number of Contacts = 2
Contact Configuration = DP5T
Contact Current Rating = 150 mA @ 250 V ac
Contact Material = Silver Plated Brass
Contact Type = Shorting
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +100°C
Mounting Type = Panel Mount
Terminal Type = Solder
Miniature Shaft Assembly ; Wafers. Miniature Shaft Assembly. Double-spring detent mechanisms in miniature size Life expectancy >100000 detent operations 30° indexing and adjustable end stops Takes up to 8 miniature wafers (the capacity is reduced if spacers and/or screens are used) 6mm diameter shaft and M10 x 0.75 mounting bushes Overall length 94mm, front shaft length 12mm Optional accessories are available for to suit individual requirements. Wafers. Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts 25mm diameter Available in break before make (bbm) , and make before break (mbb) versions ;ul> ;li> ; 352-193 352-193 BBM ;/li> ;li> ; 352-200 352-200 BBM ;/li> ;li> ; 352-216 352-216 BBM ;/li> ;li> ; 352 222 352 222 BBM ;/li> ;li> ; 352-238 352-238 BBM ;/li> ;li> ; 352-244 352-244 MBB ;/li> ;li> ; 352-250 352-250 MBB ;/li> ;/ul>
