Key Features:

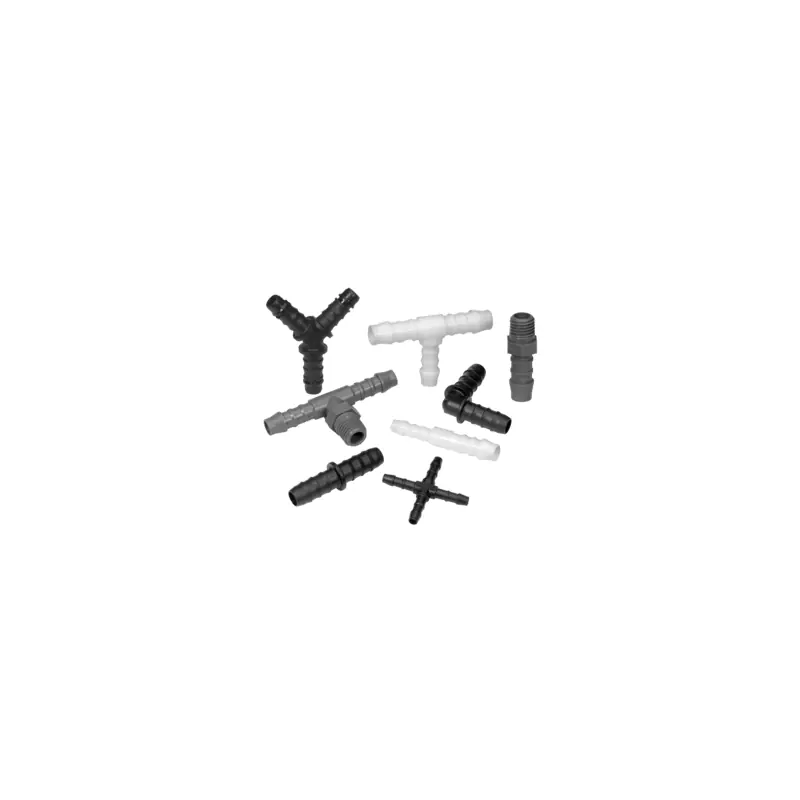

- Secure and reliable connection for fluid transfer pipelines
- Compatible with PA6 or PA12 pipes
- Eliminates the need for additional hose clamps
- Made from black polyamide 6 or 12 with 30% glass fiber reinforcement
- O-rings available upon request
Technical Specifications:
- Material: Black Polyamide 6 or Polyamide 12 with 30% glass fiber reinforcement
- Temperature Range: -40°C to +120°C
- Tensile Strength: Approximately 82.7 MPa (12,000 psi)
- Elongation at Break: 70%
- Flexural Strength: Approximately 103 MPa (15,000 psi)
- Impact Resistance: Notched Izod Impact at 23°C: 37.4 J/m (0.7000 ft-lb/in)
Dimensions:
- Available in various sizes to accommodate different hose diameters
- Specific dimensions depend on the model selected
Compatibility Information:
- Designed for use with PA6 or PA12 pipes
- Suitable for applications in automotive, machine building, chemical industry, irrigation systems, food and beverage industry, railway industry, agricultural machines, engine manufacturing, and pump and filter systems
Additional Details:
- Offers high strength, durability, low weight, shock damping, scuff resistance, and high impact resistance
- O-rings can be provided upon request for enhanced sealing
