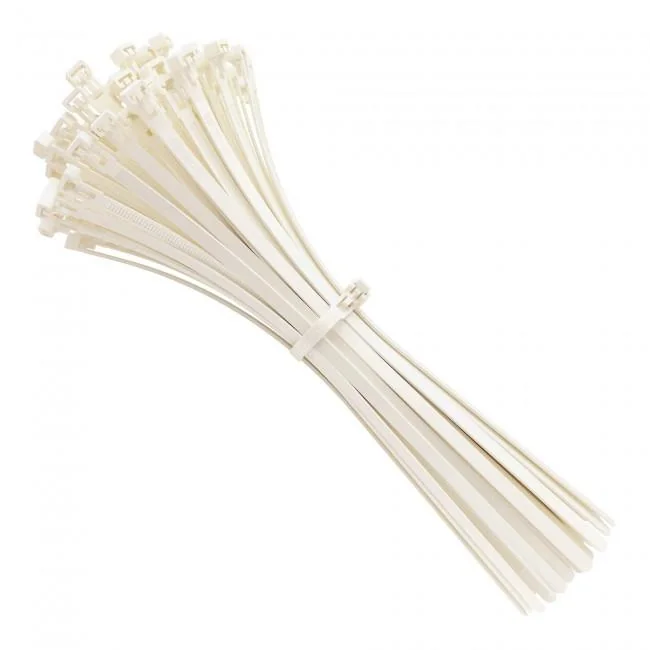

The NORMAFIX® White Nylon Cable Ties are designed for the secure bundling and fastening of cables in various applications, including electrical installations, industrial wiring, automotive, and marine environments. Crafted from high-quality polyamide 6.6 (PA 6.6), these cable ties offer exceptional resistance to extreme temperatures and a wide range of external agents.
- Material: Made from polyamide 6.6, providing optimal resistance to extreme temperatures, bases, oils, greases, and more.
- Design: Smooth, round edges for easier handling and safer installation.
- Color Options: Available in white, black, red, yellow, green, and blue to suit various applications.
- UV Resistance: Black cable ties feature added "carbon black" for enhanced UV resistance, making them suitable for outdoor use.
- Installation: Bent, rounded tip allows for easier insertion through the head of the cable tie, and a low-friction material coefficient enables faster installation.
Technical Specifications:
- Dimensions: Band width of 2.2 mm and length of 75 mm.
- Temperature Range: Working temperature from -45°C to 85°C; tightening temperature from -10°C to 60°C; maximum admissible point up to 120°C for short durations.
- Flame Retardancy: Evaluated according to UL 94-V2.
- Limiting Oxygen Index (LOI): 27%.
- Moisture Absorption: 2.7% to 50% relative humidity.
- Halogen-Free: Yes, evaluated according to EN 50146.
- Chemical Resistance: Excellent resistance to aromatic solvents, bases, oils, fats, and petroleum products; limited resistance to acids; not resistant to phenol and chlorinated solvents.
Materials:
- Primary Material: Polyamide 6.6 (PA 6.6).
Dimensions:
- Band Width: 2.2 mm.
- Length: 75 mm.
Compatibility Information
- These cable ties are suitable for a wide range of applications, including:
- Electrical installations.
- Industrial cabling.
- Automotive cabling.
- Marine cabling.
- Panel building.
- Special applications.
