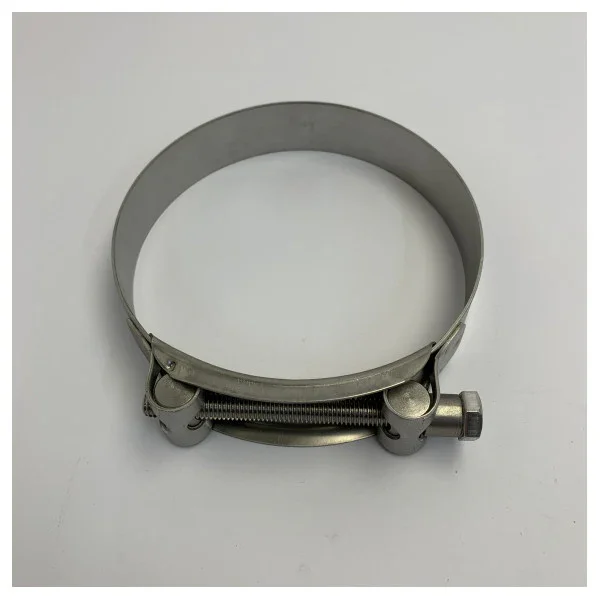

Norma Heavy Duty RVS Hose Clamp W4 113-121mm
The Norma Heavy Duty hose clamp is the ultimate solution for heavy industrial applications and marine use. This robust clamp, also known as a bolt clamp or joint bolt clamp, is specifically designed for situations where extreme clamping force and maximum reliability are required. Thanks to the complete stainless steel W4 construction, this clamp offers superior resistance to corrosion, even in saltwater environments.
Why choose the Norma Heavy Duty clamp?
Unlike standard hose clamps, this model features a strong bolt connection. This ensures an even distribution of pressure around the entire circumference of the hose. As a result, the clamp is particularly suitable for reinforced hoses and suction hoses with a high wall thickness. The rounded edges of the band protect the hose from damage, extending the lifespan of your installation.
Key features and benefits
- Maximum Corrosion Resistance: Fully made from high-quality stainless steel W4 for long-term use in damp and marine conditions.
- Extreme Clamping Force: The strong hexagon bolt allows the clamp to be tightened very securely without deforming the band.
- Safe Design: The turned-up band edges prevent cutting into the hose wall.
- Wide Applicability: Ideal for shipping, agriculture, wastewater treatment, and heavy industry.
- Reliable Sealing: Guarantees a leak-free connection under high pressure and heavy load.
Technical specifications
- Brand: Norma
- Type: Heavy Duty Bolt Clamp (GBS)
- Span Range: 113 to 121 millimeters

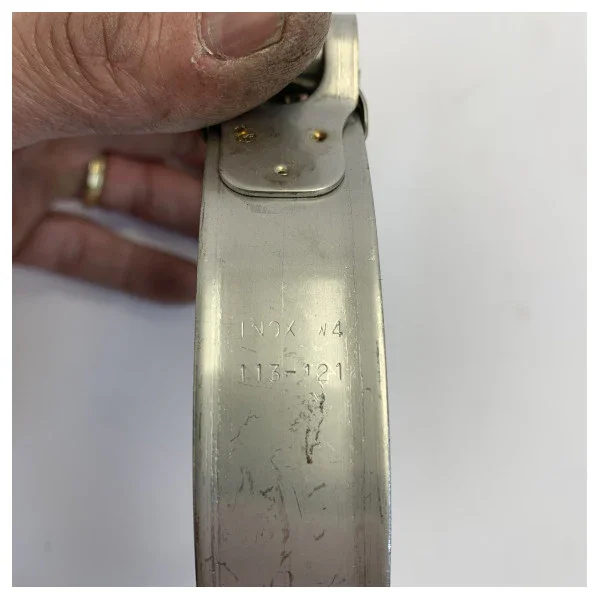

- Material: Stainless steel W4 (AISI 304)
- Band Width: 24 millimeters
- Type of Bolt: Hexagon bolt for easy assembly with a wrench
- Application: Suitable for marine use and heavy industry
- Quality Standard: DIN 3017
This Norma hose clamp provides the assurance you need for critical connections on board ships or in complex machinery construction. Thanks to the durable materials and thoughtful design, you are guaranteed a safe and maintenance-free installation.
