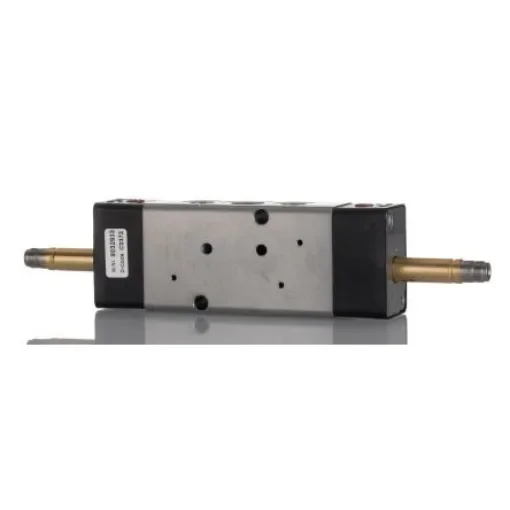

Norgren Spool Valve - Solenoid/Solenoid G 1/4, G 1/8 97105 Series - 9711000000000000
High-performance solenoid spool valve with G 1/4 and G 1/8 connections for efficient operation.
Manufacturer part number: 9711000000000000
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Connection Port Thread = G 1/4, G 1/8
Actuation Type = Solenoid/Solenoid
Manufacturer Series = 97105
Mounting Style = NAMUR
Number of Ports = 2
Body Material = Anodised Aluminium
Maximum Flow Rate = 750L/min
Minimum Operating Pressure = 2bar
Maximum Operating Pressure = 8 bar°C
Thread Standard = G
The IMI Norgren 97105 NAMUR series indirect solenoid actuated spool valves are single and double acting actuators having crossover free switching.Exhaust air recirculation Crossover-free switching, switch-over function guaranteed even with small cross section air supply Rest position in the event of power failure (monostable design) Manual override with detent Variable valve solenoid combination
