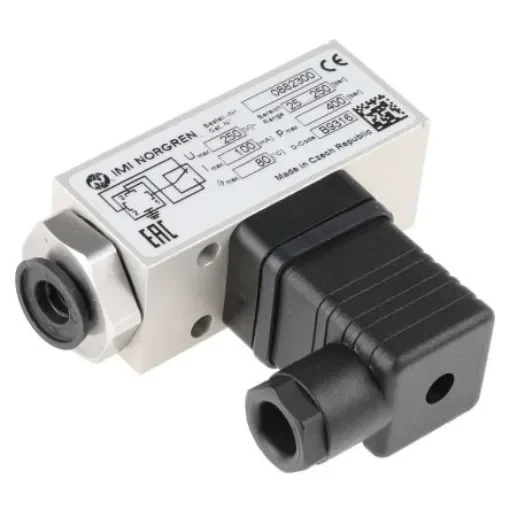

Norgren Pressure Switch, G 1/4 25bar to 250 bar - 0882300000000000

Maximum Operating Pressure = 250 bar
Minimum Operating Pressure = 25bar
Pressure Type = Positive Pressure
Connection = G 1/4
Suitable Media = Fluid, Oil
Type = Pressure Switch
Connection Thread Size = 1/4 in
Manufacturer Series = 18D
Contact Operation = Normally Closed, Normally Open
Connection Thread Standard = G
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +80°C
IP Rating = IP65
Thread Gender = Male

Norgren Pressure SwitchThe Norgren 18D series pressure switch has an operating pressure ranges between 25bar and 250bar. This is a positive pressure switch with a G1/4 thread connection. This electro-mechanical pressure switch is used for connecting and disconnecting electronic circuits utilizing pressure. It monitors minimum pressure and is equipped with automatic switch off and pressure limit warning. This switch is suitable for use in pneumatic, hydraulic and vacuum systems. Pressure switches Pressure switches that allow microswitch operation once a pre-set pressure is reached. K and K3 series incorporate a mechanical stop providing over-pressure protection for the spring and microswitch. Electrical connections for all the models to DIN 43650. Warning: Observe the switching range. Do not subject the switch to maximum allowable pressure during normal operation. Short pressure peaks must not exceed this value.Features and BenefitsGold-plated microswitch contacts High number of switching cycles permissible Designed for pressure monitoring in hydraulic systems Designed to withstand vibrations up to 15G Suitable for intrinsically safe operationCertificationsIP65 rated UL approved CSA certified
