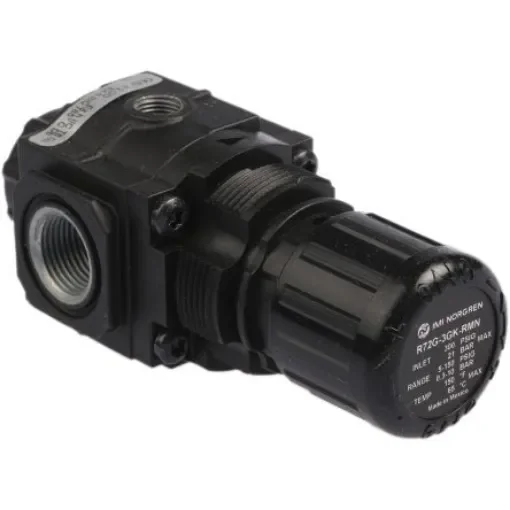

Norgren G 3/8 Pneumatic Regulator - 0.3bar to 10bar, 3/8in, 20bar max. input - R72G-3GK-RMN

Port Connection = G 3/8
Maximum Outlet Pressure = 10bar
Minimum Outlet Pressure = 0.3bar
Maximum Input Pressure = 20bar
Manufacturer Series = R72G
Pressure Gauge Port Size = Rc 1/8
Port Connection Thread Size = 3/8in
Pressure Gauge Port Thread Size = 1/8in
Maximum Flow Rate = 33L/s
Integral Check Valve = Without Check Valve
Port Connection Thread Standard = G
Minimum Operating Temperature = -34°C
Maximum Operating Temperature = +65°C
Pressure Gauge Port Thread Standard = Rc

Typical flow data is accurate with 10 bar inlet pressure, 6.3 bar set pressure and a 1 bar drop. Norgren Excelon Series Pressure Regulator. Norgren Excelon series pressure regulator are designed to suit either in-line or modular installations. The regulators feature a balanced valve that minimises pressure variations from the inlet to maintain a constant output pressure. Features and Benefits. ;ul> ;li>Push to lock adjusting knob ;/li> ;li>In-line or modular installation ;/li> ;li>Balanced valve design for optimum pressure control ;/li> ;li>Allows reduction of downstream pressure when the system is dead-ended ;/li> ;li>Temperature range -34°C to +65°C/80°C ;/li> ;/ul>
