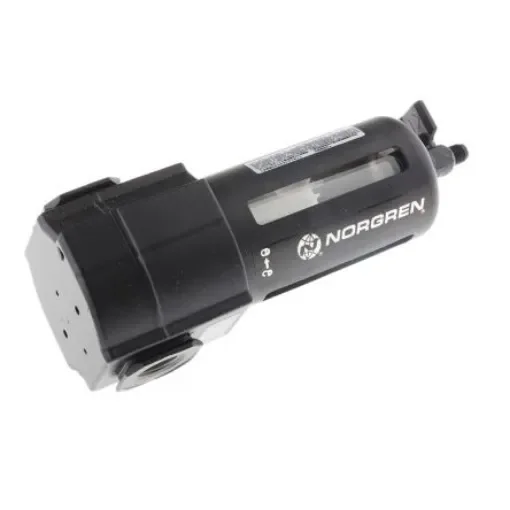

Norgren F74G series 40µm G 1/2 10 bar Pneumatic Filter with Manual drain - F74G-4GN-QP3
Efficient 40µm pneumatic filter with manual drain for clean air supply.
Manufacturer part number: F74G-4GN-QP3
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Filtration Size = 40µm
Port Connection = G 1/2
Drain Type = Manual
Manufacturer Series = F74G
Typical Flow Rate = 83L/s
Maximum Operating Pressure = 10 bar
Maximum Operating Temperature = +50°C
Port Connection Thread Standard = G
Minimum Operating Temperature = -34°C
Port Connection Thread Size = 1/2 in
Typical flow @ 6 bar inlet pressure and 0.5 bar pressure drop. General Duty Filter. Removes water vapour and impurities from the air supply Filtration size 40 µm Manual drain filter incorporates a quarter-turn knob with threaded pipe-away outlet Transparent polycarbonate bowl Temperature range -34°C to +50°C Element material sintered polypropylene
