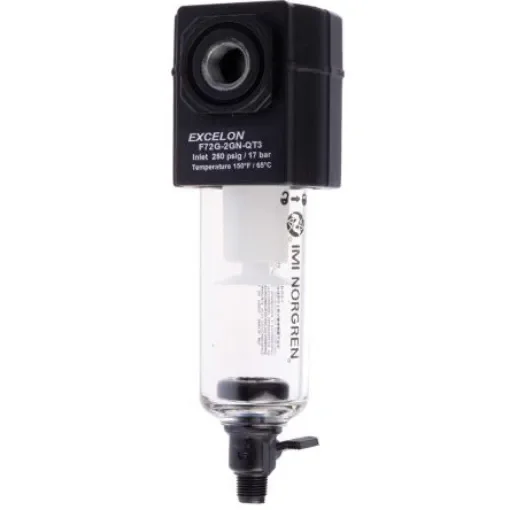

Norgren F72G series 40µm G 1/4 10 bar Pneumatic Filter with Manual drain - F72G-2GN-QT3
Ensure clean air supply with the Norgren F72G 40µm Pneumatic Filter featuring a manual drain.
Manufacturer part number: F72G-2GN-QT3
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Filtration Size = 40µm
Port Connection = G 1/4
Drain Type = Manual
Manufacturer Series = F72G
Typical Flow Rate = 30L/s
Maximum Operating Pressure = 10 bar
Maximum Operating Temperature = +50°C
Port Connection Thread Standard = G
Minimum Operating Temperature = -34°C
Port Connection Thread Size = 1/4 in
Typical flow @ 6 bar inlet pressure and 0.5 bar pressure drop. General Duty Filter. Removes water vapour and impurities from the air supply Filtration size 40 µm Manual drain filter incorporates a quarter-turn knob with threaded pipe-away outlet Transparent polycarbonate bowl Temperature range -34°C to +50°C Element material sintered polypropylene
