Norgren B07 Filter Regulator, 40µm, G 1/4, Automatic, 7 bar - B07-201-A3KG

Port Connection = G 1/4
Maximum Operating Pressure = 7 bar
Manufacturer Series = B07
Drain Type = Automatic
Filtration Size = 40µm
Pressure Gauge Port = Rc 1/8
Pressure Gauge Port Thread Size = 1/8 in
Port Connection Thread Size = 1/4 in
Maximum Ambient Operating Temperature = +50°C
Minimum Operating Pressure = 0.3bar
Pressure Gauge Port Thread Standard = Rc°C

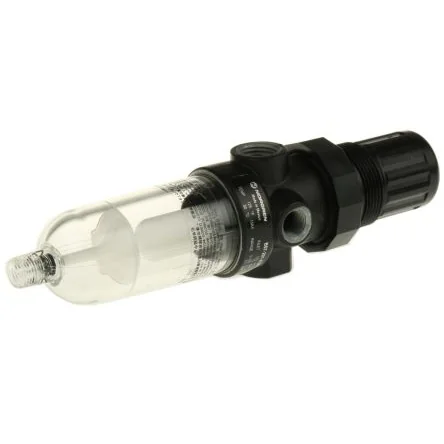

Norgren Filter RegulatorThe Norgren 40µm pneumatic filter regulator has a G 1/4in port connection and a maximum operating pressure of 7bar. The regulator has a zinc housing and an acetal seal. It is installed with an auto drain without a gauge. Warning: Ice formation may cause malfunction or damage below +2°C, consult the helpline.Features and BenefitsCombined filter and a regulator in a single, compact unit Long-life filter element Low torque push-to-lock adjustment Operating temperature ranging between -20°C and 50°C Optimum performance with minimum space Panel or bracket mounting Polycarbonate bowl Relieving type regulator Zinc alloy body
