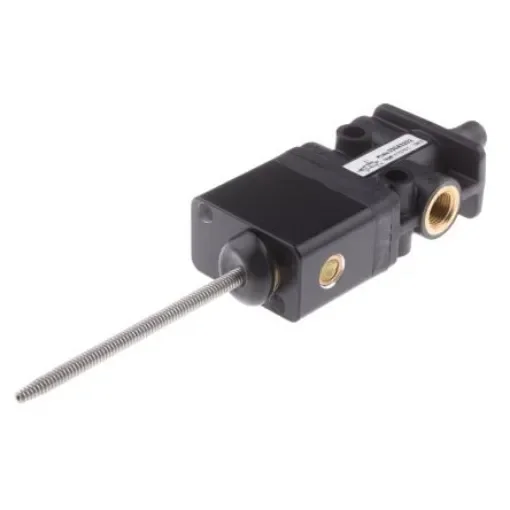

Norgren Antenna 3/2 Pneumatic Manual Control Valve 03 Series, G 1/8, 1/8in, III B - 03043202

Control Mechanism = Antenna
Connection Port Thread = G 1/8
Function = 3/2
Thread Size = 1/8in
Thread Standard = G
Manufacturer Series = 03
Maximum Operating Pressure = 10 bar
Body Material = PA
Maximum Flow Rate = 335L/min
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +70°C
Number of Positions = 2
Model Number p = III B

Norgren Pneumatic Manual Control ValveThe Norgren 03 Series 3/2 port pneumatic manual control valve has a port size of 1/8in G. This valve is designed for use with cylinders up to 50mm bore for most applications. It is an antenna-actuated spring return valve. This valve is suitable for multi-directional flow and dual supply applications. Note: Due to manufacturer change, valves of 3/2 function now have moulded polymer (Fortron PPS) body which replaces the older metal body.Features and BenefitsHigh flow capacity Suitable for panel mounting Made from lightweight corrosion-resistant material Maximum operating pressure is 10bar Maximum flow rate is 335L/min Operating temperature ranges between 0°C and 70°C
