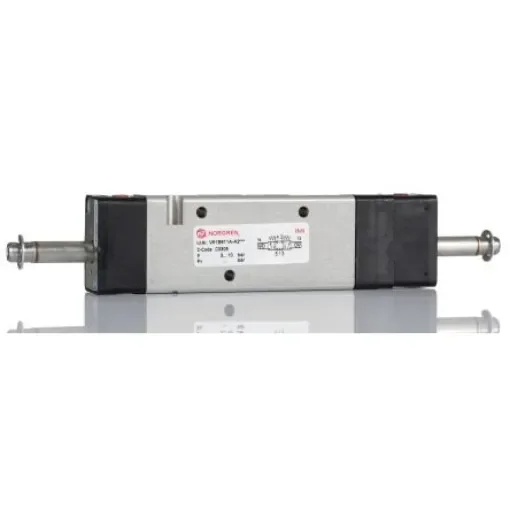

Norgren 5/3 Pneumatic Solenoid Valve - Solenoid/Solenoid G 1/4 61 Series - V61B611A-A2000

Function = 5/3
Connection Port Thread = G 1/4
Actuation Type = Solenoid/Solenoid
Manufacturer Series = 61
Mounting Style = Manifold
Number of Ports = 5
Body Material = Aluminium
Maximum Flow Rate = 950L/min
Minimum Operating Pressure = 3bar
Minimum Operating Temperature = -10°C
Thread Standard = G

Norgren Inline Solenoid ValveThe Norgren V61 series 5/3 ports directional control valve has a high flow rate of 950L/min. This valve has a G1/4in G inline port connection and solenoid type actuation. It is made of aluminium and manifold mount. This valve is suitable for compressed air filtered up to 50µm, lubricated or dry. Note: Pilot valves are sometimes referred to as pressure-actuated valves. Solenoid coil operators and connector plugs must be ordered. Warning: Compressed air, whilst generally considered a safe source of energy, must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.Features and BenefitsLow power consumption Maintenance-free and easy assembly Push and lock manual override option Internal pilot supply Operating pressure ranges between 3bar and 8bar Operating temperature ranges between -10°C and 50°C Proven sealing system Small volumetric sizeCertificationsIP65 rated
