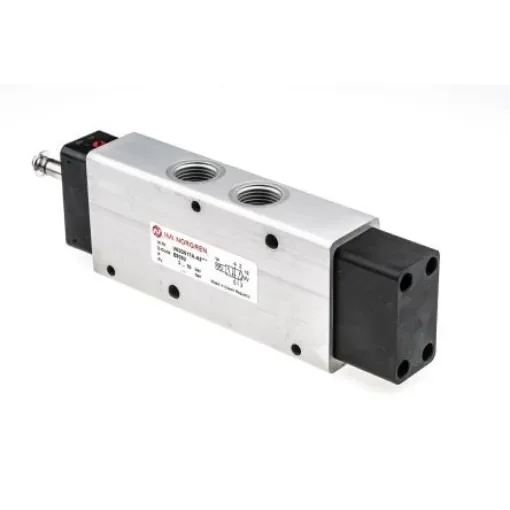

Norgren 5/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/2 V63 Series - V63D517A-A2000

Function = 5/2
Connection Port Thread = G 1/2
Actuation Type = Solenoid/Spring
Manufacturer Series = V63
Number of Ports = 5
Body Material = Aluminium
Maximum Flow Rate = 4500L/min
Minimum Operating Pressure = 3bar
Number of Positions = 2in
Thread Standard = G

Norgren Inline Solenoid ValveThe Norgren V61 series 5/2 ports directional control valve has a high flow rate of 4200L/min. This valve has a G1/2in G inline port connection and solenoid type actuation. It is made of aluminium and manifold mount. This valve is suitable for compressed air filtered up to 50µm, lubricated or dry. Note: Pilot valves are sometimes referred to as pressure-actuated valves. Solenoid coil operators and connector plugs must be ordered. Warning: Compressed air, whilst generally considered a safe source of energy, must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.Features and BenefitsLow power consumption Maintenance-free and easy assembly Manual override options Operating pressure ranges between 3bar and 8bar Operating temperature ranges between -10°C and 50°C Proven sealing system Small volumetric sizeCertificationsIP65 rated
