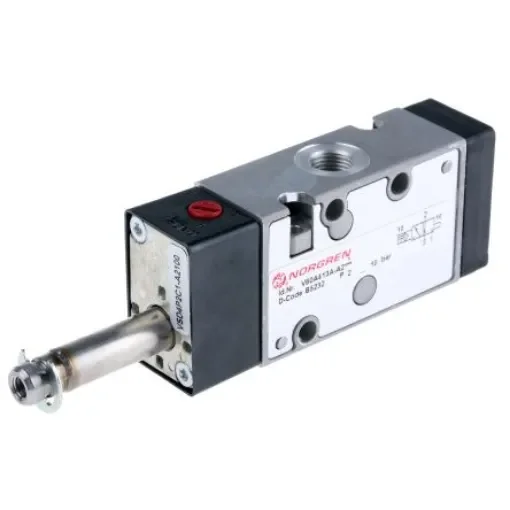

Norgren 3/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/8 60 Series - V60A413A-A2000

Function = 3/2
Connection Port Thread = G 1/8
Actuation Type = Solenoid/Pilot
Manufacturer Series = 60
Mounting Style = Manifold
Solenoid Fitted = Yes
Number of Ports = 3/2
Body Material = Aluminium
Maximum Flow Rate = 750L/min
Minimum Operating Pressure = 2bar
Maximum Operating Pressure = 8bar
Thread Standard = G

Compressed air, whilst generally considered a safe source of energy, must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended. Pilot valves are sometimes referred to as pressure actuated valves. Solenoid coil operators and connector plugs must be ordered. V60-63 Series Solenoid Valve. The Norgren series of solenoid valves offer high flow rates at a small size, requiring minimal installation space, with a manifold system for easy assembly. The solenoid valves are maintenance free, with a proven sealing system, and low power consumption. Features and Benefits. The V60-63 series of solenoid valves benefit from a long life, maintenance free with extensive switching cycles The range features application based pilot valves available in a variety of functions and sizes Suitable for operation with a number of mediums; standard compressed air, filtered lubricated and non-lubricated applications Operating pressure ranges of -0.9 to 10 bar (-13 to 145 psi) Common external air supply and pilot air exhaust possible
