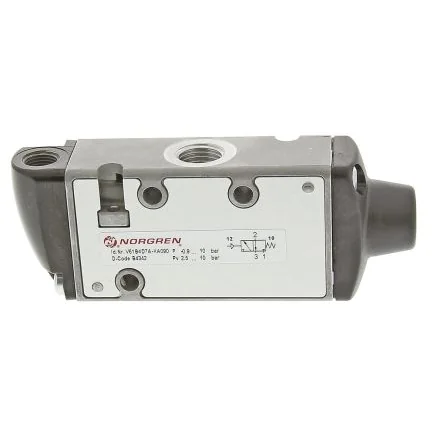

Norgren 3/2 Pneumatic Solenoid Valve - Pilot/Spring G 1/4 V61 Series - V61B4D7A-XA090

Function = 3/2
Connection Port Thread = G 1/4
Actuation Type = Pilot/Spring
Manufacturer Series = V61
Number of Ports = 3
Body Material = Aluminium
Maximum Flow Rate = 1300L/min
Minimum Operating Pressure = -0.9bar
Maximum Operating Pressure = 10bar
Thread Standard = G

Norgren Inline Solenoid ValveThe Norgren V61 series 3/2 ports directional control valve has a high flow rate of 1300L/min. This valve has a G1/4in port connection and pilot type actuation. It is made of aluminium and manifold mount. This valve is suitable for compressed air filtered up to 50µm, lubricated or dry. Note: Pilot valves are sometimes referred to as pressure-actuated valves. Solenoid coil operators and connector plugs must be ordered. Warning: Compressed air, whilst generally considered a safe source of energy, must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.Features and BenefitsLow power consumption Maintenance-free and easy assembly Push and lock manual override option External pilot supply Operating pressure ranges between -0.9bar and 10bar Operating temperature ranges between -10°C and 50°C Proven sealing system Small volumetric sizeCertificationsIP65 rated
