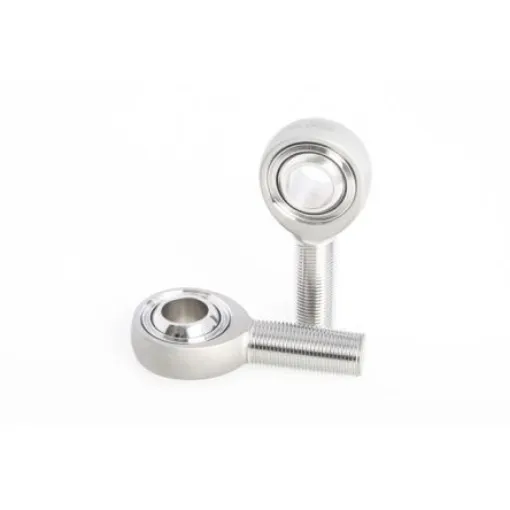

NMB 0.5-20 Male Stainless Steel Rod End, 12.7mm Bore, Male Connection Gender - ART8E(R)
Durable NMB male rod end bearing designed for high load applications in extreme conditions.
Manufacturer part number: ART8E(R)
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Connection Size = 0.5-20 Male
Bore Size = 12.7mm
Material = Stainless Steel
Static Load Rating = 86736 (Ultimate) N, 9074 (Static) N
Maximum Operating Temperature = +121°C
Minimum Operating Temperature = -54°C
Connection Gender = Male
NMB ART-E, ART series male rod end bearings self-lubricating 3- piece, Right hand thread. Ideal in extreme conditions. Materials: Bearing: Stainless steel CRES 440C. Outer cage: Stainless steel CRES 410 with heat treatment. Coating: Teflon. Rod body: 4340 steel with heat treatment and surface coating. Rod end bearings are used on the ends of cylinders, linkages, shafts and rods where an articulating joint is needed, they take up angular misalignments between connecting components. Benefits include long service life, high reliability and low maintenance. Applications are across many industry sectors.
