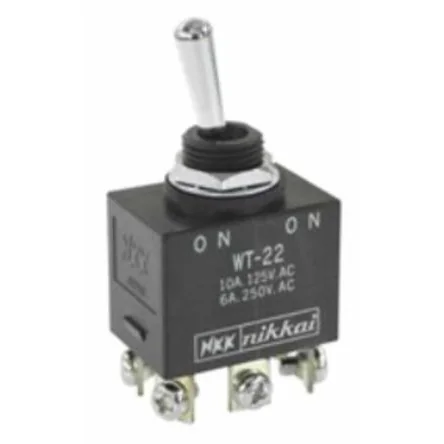

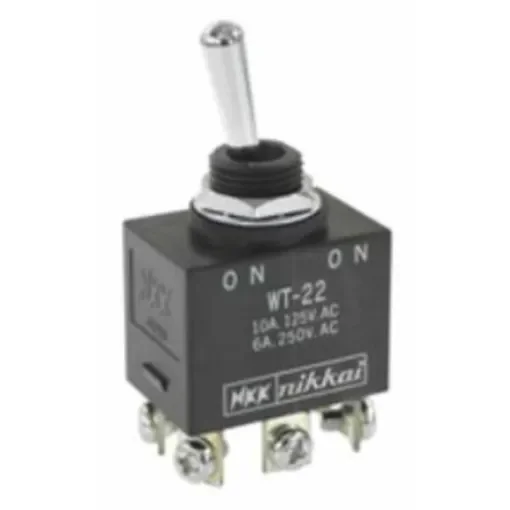

NKK Switches Toggle Switch, Panel Mount, On-On, DPDT, Screw Terminal - WT22T
The NKK Switches toggle switch offers reliable DPDT contacts with On-On operation for panel mounting.
Manufacturer part number: WT22T
Availability: Out of stock
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Contact Configuration = DPDT
Switch Operation = On-On
Contact Current Rating = 10A (AC/DC)
Mounting Type = Panel Mount
Terminal Type = Screw
IP Rating = IP67
Illuminated = No
The NKK Switches toggle switch has DPDT contacts, and On-On circuit configuration. Terminals are made up brass with tin plating. Screw terminal type used. Its operating temperature range is -30 to +70 °C. This product belongs to WT series.Interlocked movable contact mechanism provides highly reliable switching by minimizing contact bounce over centre contact Single unit construction of bushing and case gives added protection from environmental elements Epoxy sealed base covered by outer case increases protection from dust and water
