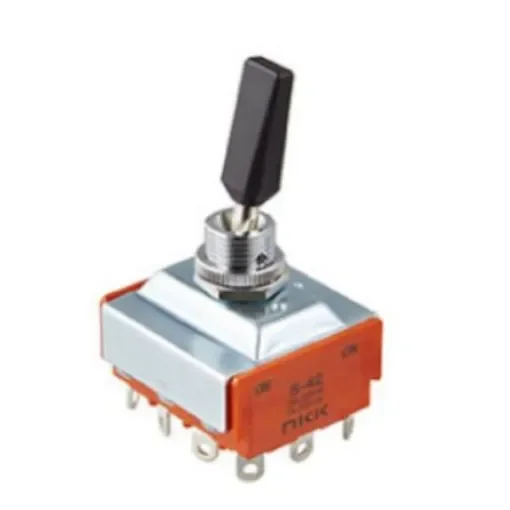

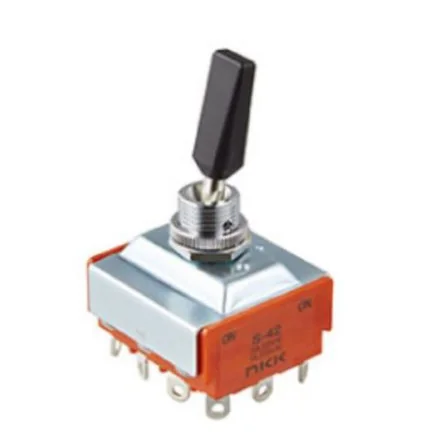

NKK Switches Toggle Switch, Panel Mount, On-On, 4PDT, Solder Lug Terminal, 30 V dc, 125V ac - S42R/215
The NKK Switches Toggle Switch offers a 4PDT configuration with a 20A rating for reliable panel mounting.
Manufacturer part number: S42R/215
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Contact Configuration = 4PDT
Switch Operation = On-On
Contact Current Rating = 20 A
Mounting Type = Panel Mount
Terminal Type = Solder Lug
IP Rating = IP40
Illuminated = No
Panel Cut Out Diameter = 12.5mm
Actuator Length = 27mm
Actuator Material = Brass
Voltage Rating = 30 V dc, 125 V ac, 250V ac
Contact Material = Copper
Maximum Operating Temperature = +70°C
The NKK Switches Low-High Capacity Standard Toggle Switch is a Paddle type of Actuator. They are Non-Illuminated and have a current rating of 20A.Mounting Type Panel Mount Poles 4PDT
