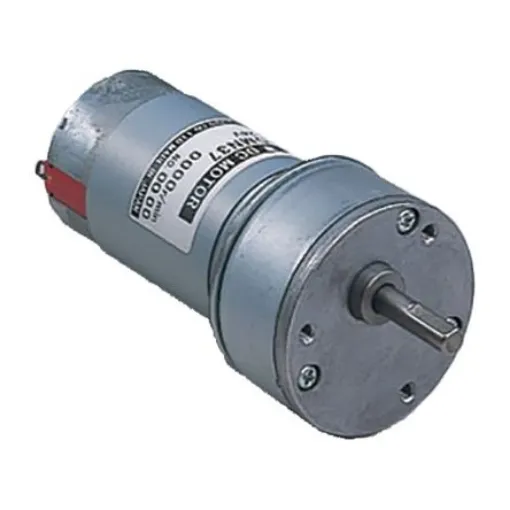

Nidec Brushed Geared DC Geared Motor, 9.2 W, 12 V dc, 1 Nm, 52 rpm, 6.8mm Shaft Diameter - DMN37K50G72A
High-performance Nidec brushed geared DC motor with 1Nm torque and 52rpm speed.
Manufacturer part number: DMN37K50G72A
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 12 V dc
DC Motor Type = Brushed Geared
Power Rating = 9.2 W
Output Speed = 52 rpm
Shaft Diameter = 6.8mm
Maximum Output Torque = 1 Nm
Gear Ratio = 50:1
Dimensions = 50 (Dia.) x 112.8 mm
Current Rating = 1.2 A
Length = 112.8mm
Width = 50mm
Standards Met = RoHS Compliant
Nidec 12Vdc/24Vdc Geared Motor, Series DMN37-50G. Series DMN37 DC motors fitted with a spur gearbox for higher torque and lower speed rotation. Brushed motor Series DMN37 combinated with a Spur gearbox 50G 12 Vdc or 24Vdc rated voltage version available For bi-directional application
