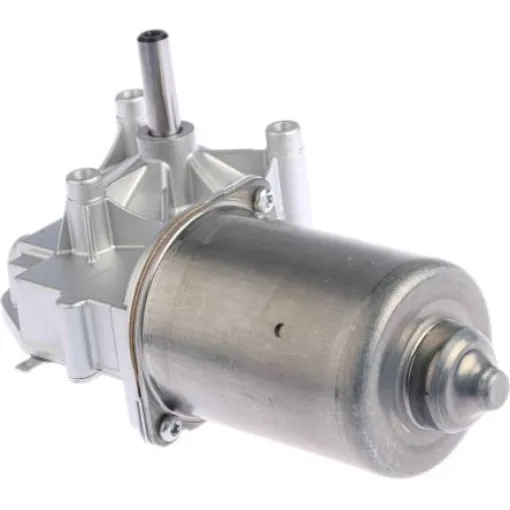

Nidec Brushed Geared DC Geared Motor, 65.6 W, 24 V dc, 3 Nm, 240 rpm, 10mm Shaft Diameter - 405063 DCK35
High-performance Nidec brushed geared DC motor with 65.6W power and 3Nm torque for efficient applications.
Manufacturer part number: 405063 DCK35
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24 V dc
DC Motor Type = Brushed Geared
Power Rating = 65.6 W
Output Speed = 240 rpm
Shaft Diameter = 10mm
Maximum Output Torque = 3 Nm
Gearhead Type = Worm
Gear Ratio = 70:4
Dimensions = 62 (Dia.) x 178 mm
Current Rating = 8 A
Length = 178mm
Width = 62mm
Core Construction = Permanent Magnet
Nidec 24Vdc Geared Motor, Series DCK35. Series DCK35 DC motors fitted with a worm gearbox for higher torque and lower speed rotation. Motor delivers output signal for further control. Brushed motor Worm gear 2 output channels 24Vdc rated voltage For bi-directional application Protection class IP30
