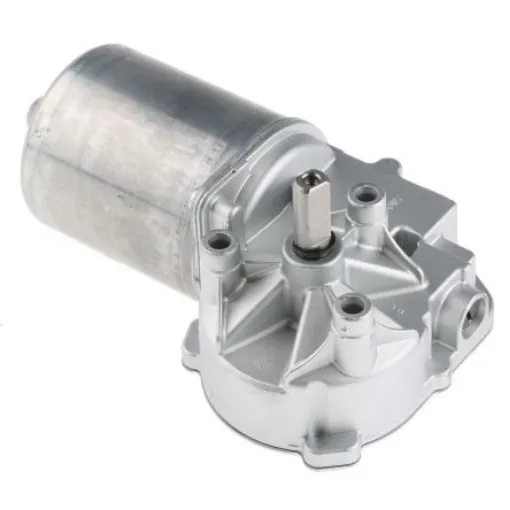

Nidec Brushed Geared DC Geared Motor, 25.4 W, 24 V dc, 4 Nm, 66 rpm, 10mm Shaft Diameter - 404864 DCK31
High-performance Nidec brushed geared DC motor with 25.4W power and 4Nm torque for versatile applications.
Manufacturer part number: 404864 DCK31
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24 V dc
DC Motor Type = Brushed Geared
Power Rating = 25.4 W
Output Speed = 66 rpm
Shaft Diameter = 10mm
Maximum Output Torque = 4 Nm
Gearhead Type = Worm
Gear Ratio = 69:1
Dimensions = 59.8 (Dia.) x 163.3 mm
Current Rating = 4 A
Length = 163.3mm
Width = 59.8mm
Standards Met = ISO 965-2
Nidec 24Vdc Geared Motor, Series DCK31. Series DCK31 DC motors fitted with a worm gearbox for higher torque and lower speed rotation. Brushed motor Worm gear 24Vdc rated voltage For bi-directional application Protection class IP30
