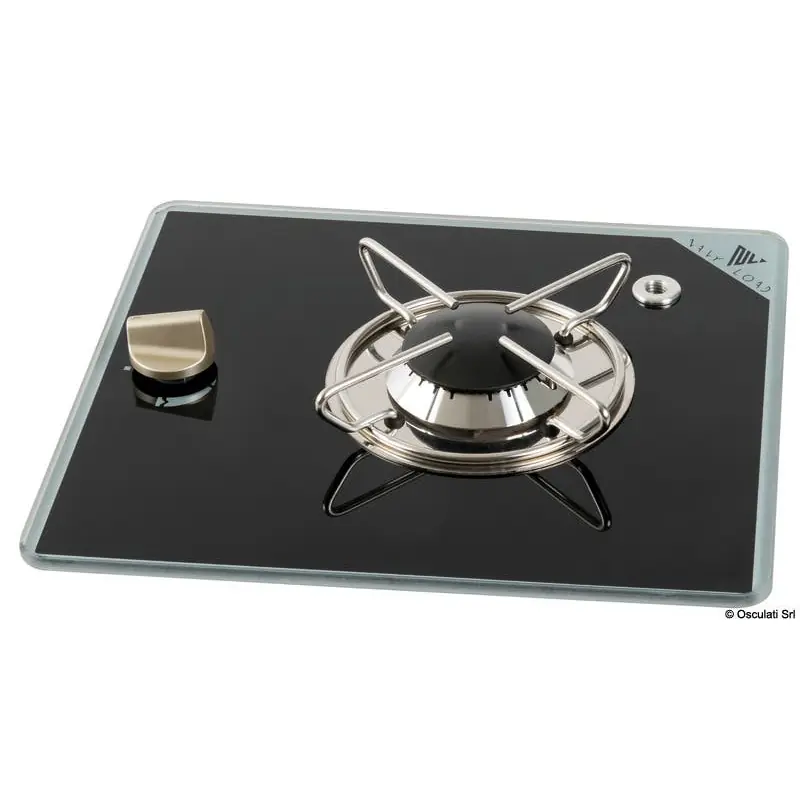

The Navy Load Crystal Gas Hob 1 Burner is a built-in gas stove designed for compact spaces such as vans, campervans, motorhomes, and boats. It features a black tempered glass cooking surface, offering a sleek and modern aesthetic. The stove is equipped with a thermocouple safety system, which immediately shuts off the gas supply if the flame is extinguished, ensuring safe operation. It is CE certified, confirming compliance with European gas standards for indoor installation.
- Design: Sleek black tempered glass surface suitable for compact spaces.
- Safety: Thermocouple safety system that cuts off gas supply if the flame goes out.
- Certification: CE certified for indoor installation in vans, campervans, motorhomes, and boats.
- Compatibility: Suitable for butane (28-30 mBar), LPG (30 mBar), and propane (30-37 mBar) gas supplies.
Technical Specifications
- Number of Burners: 1
- Power Output: 1.8 kW
- Gas Supply: Butane (28-30 mBar), LPG (30 mBar), Propane (30-37 mBar)
- Gas Inlet: Reinforced stainless steel pipe with an 8 mm diameter, designed for an RSV 8 mm connection.
- Dimensions:
- Overall Dimensions: Approximately 290 mm (W) x 325 mm (D) x 65 mm (H)
- Built-In Dimensions: Approximately 270 mm (W) x 305 mm (D)
- Weight: Approximately 3 kg
- Material: Black tempered glass surface
Installation Information
- Installation Type: Built-in
- Cut-Out Dimensions: Approximately 270 mm (W) x 305 mm (D)
- Installation Depth: Approximately 65 mm
- Safety Clearance: Maintain a minimum of 55 mm between the stove and the opposite wall, and 100 mm on the side to prevent heat damage and ensure ease of use.
