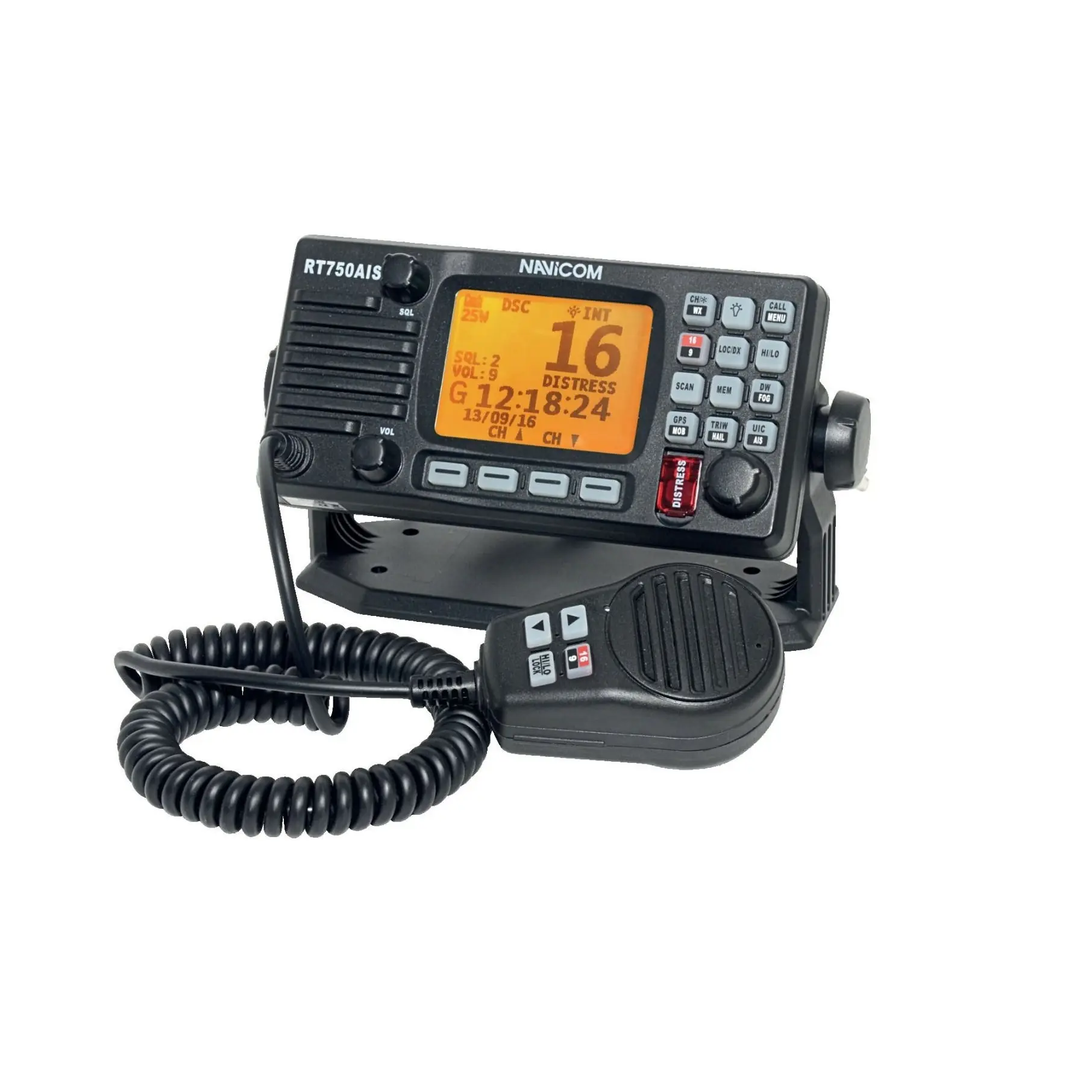

The Navicom VHF RT 750 V2 AIS with Integrated GPS Antenna is a compact and powerful fixed VHF radio designed for marine communication. It seamlessly integrates VHF, DSC (Digital Selective Calling), and AIS (Automatic Identification System) functionalities, providing comprehensive communication and navigation capabilities.
- Integrated AIS Receiver: Identifies nearby vessels, enhancing situational awareness.
- Integrated GPS Antenna: Provides accurate positioning without the need for an external GPS antenna.
- Large LCD Display: Offers excellent readability in various lighting conditions.
- DSC Functionality: Allows for distress signaling and vessel identification.
- Programmable ATIS: Supports Automatic Transmitter Identification System for inland waterways.
- MOB (Man Overboard) Button: Provides direct access to MOB functions.
- Dual and Triple Watch: Monitors multiple channels simultaneously.
- NMEA 0183 Output: Enables data transmission to compatible chart plotters or PCs.
- Waterproof Front Panel: Complies with IPX7 standards for durability in marine environments.
Technical Specifications:
- Type: Fixed VHF Radio
- Channels: 56
- Emission Power: 1/25 Watts
- AIS Receiver: Integrated
- AIS Channels: 2
- AIS Receiver Frequencies: 161.975 MHz / 162.025 MHz
- GPS Receiver: Integrated
- DSC (ASN) Class D: Yes
- Programmable ATIS: Yes
- Double and Triple Watch: Yes
- MOB Function: Yes
- NMEA 0183 Output: Yes
- NMEA 0183 Input: Yes
- Waterproof Front Panel: IPX7
- Dimensions (mm): 180 x 91 x 55
- Weight: 0.97 kg
- Power Supply: 12 V DC (13.8 V)
- Standards Compliance: RED 2014/53/EU
- Warranty: 2 years
The device is constructed with marine-grade materials to ensure durability and resistance to corrosion in harsh marine environments.
Dimensions:
- Unit Dimensions: 180 mm (L) x 91 mm (H) x 55 mm (D)
- Cutout Dimensions for Installation: 73 mm (L) x 168 mm (H) x 45 mm (D)
Compatibility Information:
- Chart Plotters and PCs: Compatible with devices supporting NMEA 0183 protocol for data input and output.
- External GPS Antenna: Supports connection to an optional external GPS antenna via NMEA 0183 input.
