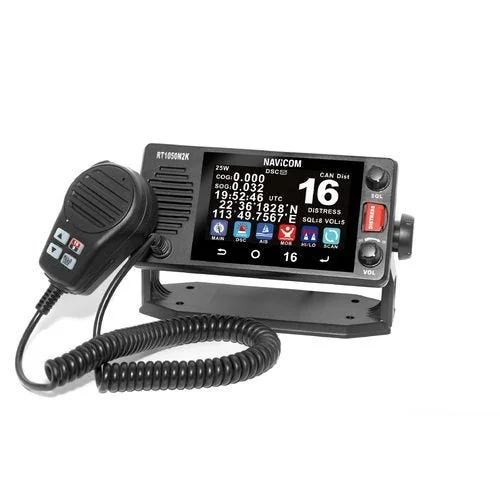

The Navicom RT1050 is a fixed VHF radio designed for marine communication, featuring a 4.3-inch color touchscreen, DSC (Digital Selective Calling) functionality, and NMEA 2000 compatibility. It offers a range of features tailored for maritime use, ensuring reliable and efficient communication.
- Touchscreen Display: 4.3-inch color LCD touchscreen for intuitive navigation and operation.
- DSC Functionality: Supports Digital Selective Calling (DSC) Class D for distress signaling and automated communication.
- NMEA 2000 Compatibility: Integrates with NMEA 2000 network, allowing reception and display of GPS information and other data from connected devices.
- Integrated GPS Antenna: Built-in GPS antenna for precise location tracking.
- Multiple Watch Modes: Double watch (16 + 1 programmable channel) and triple watch (16 + 9 + 1 programmable channel) for monitoring multiple channels simultaneously.
- Direct Access to Channel 16: Dedicated button for quick access to emergency channel 16.
- MMSI Directory: Stores up to 20 Maritime Mobile Service Identity (MMSI) numbers for quick communication.
- Power Output: Selectable transmission power of 1 or 25 watts.
- ATIS Programming: Programmable ATIS (Automatic Transmitter Identification System) for inland waterways.
- Waterproof Design: Front panel and handset rated IPX7 for water resistance.
- Language Support: Menu available in French.
Technical Specifications
- Display: 4.3-inch color LCD touchscreen.
- Channels: 56 international channels.
- Modes: Simplex and semi-duplex operation.
- Power Supply: 13.8 V DC.
- Current Consumption:
- Standby: 0.5 A.
- Transmit (25W): 4 A.
- Dimensions: 180 mm (L) x 91 mm (H) x 38 mm (D).
- Weight: 0.935 kg.
- Ingress Protection: Front panel and handset IPX7.
- MMSI Memory: 20 numbers.
- Antenna Connector: Standard 50-ohm female SO-239.
- Warranty: 2 years.
Materials
The RT1050 is constructed with durable materials suitable for marine environments, ensuring longevity and resistance to corrosion. Specific material details are not provided in the available sources.
Dimensions
- Unit Dimensions: 180 mm (L) x 91 mm (H) x 38 mm (D).
- Cutout Dimensions for Installation: 170 mm (L) x 75 mm (H) x 70 mm (D).
Compatibility Information
- NMEA 2000: Compatible with NMEA 2000 network for integration with other marine electronics.
- NMEA 0183: Supports NMEA 0183 for data exchange with compatible devices.
- AIS Integration: The RT1050-AIS model includes an integrated AIS receiver for visualizing nearby vessels equipped with AIS transponders.
