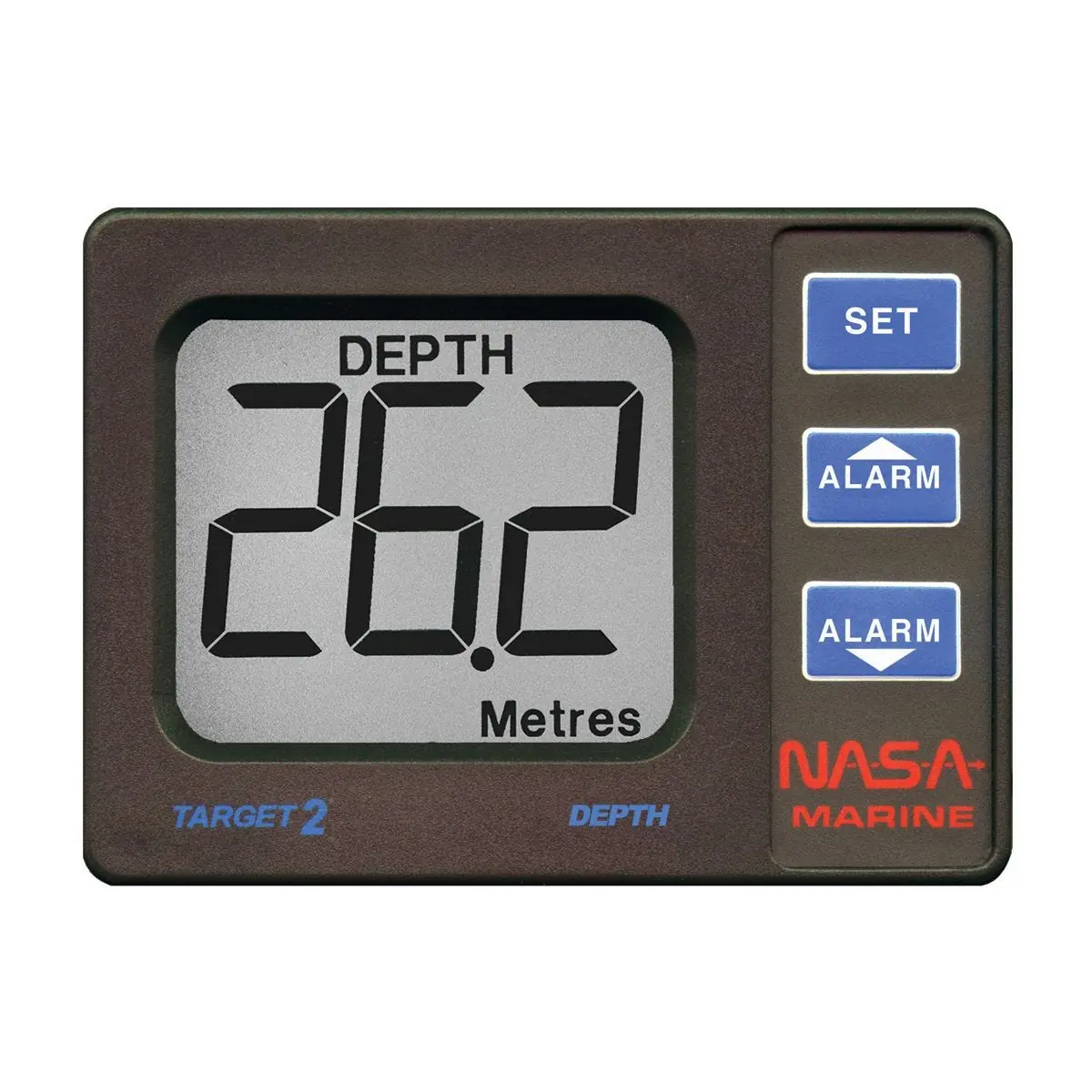

The Nasa Marine Target 2 Depth Sounder is a comprehensive marine instrument designed to provide accurate depth readings up to 100 meters. It features a backlit, waterproof liquid crystal display measuring 132 x 98 x 30 mm, ensuring clear visibility in both daylight and nighttime conditions. The device operates on a 12V supply with a low current consumption of 12mA, plus an additional 10mA when the backlight is activated.
- Depth Range: 0.8 to 100 meters
- Display: Backlit waterproof liquid crystal display (132 x 98 x 30 mm)
- Alarms: Deep and shallow water alarms
- Keel Offset: Programmable to account for the distance between the transducer and the keel
- Gain Profile: Programmable gain profile for enhanced performance
- Power Consumption: 12mA, plus 10mA with backlight
Technical Specifications:
- Operating Voltage: 12V DC
- Current Consumption: 12mA (display off), 22mA (display on with backlight)
- Display Dimensions: 132 x 98 x 30 mm
- Transducer Frequency: 150 kHz
- Transducer Cable Length: 7 meters
Materials:
- Display: Waterproof liquid crystal
- Transducer: High-quality marine-grade materials
Compatibility Information: The Target 2 Depth Sounder is compatible with various mounting kits, including through-hull and transom mounts. An in-hull transducer kit is available for installations where drilling is not preferred. The device operates on a 12V DC supply, making it suitable for most marine applications.
