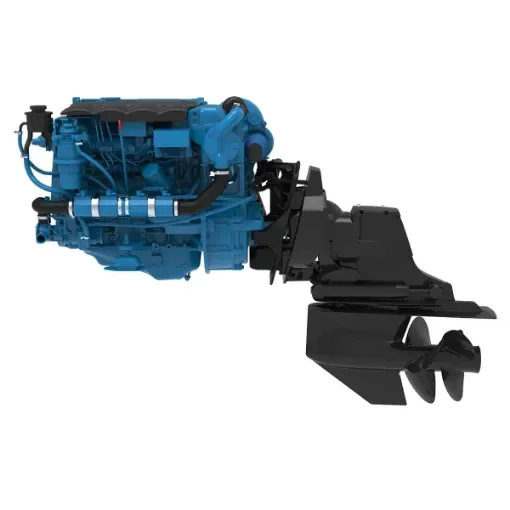

Nanni - Marine Diesel Engine 205 HP - Z4.205

Manufacturer: Nanni
Experience high power density and easy maintenance with the Nanni 205 HP Marine Diesel Engine.
Manufacturer part number: Z4.205
Vendor: Nanni

Download Data Sheet

Specifications

Configuration: 4 cylinders in line 4 strokes Diesel
Fuel system: Direct injection High pressure Common Rail Electronically controlled
Displacement: 2,982 l [182 in³]
Bore & Stroke: 96 x 103 mm [3,78 x 4,06 in]
Air intake: Turbocharged with intercooler
Cooling: Closed cooling with heat exchanger
Transmission: Stern Drive
Emission: IMO MARPOL Annex VI compliant, RCD2 2013/53/EU, EPA Marine Tier 3, BSO 2



Dimensions

Max length: 1042 mm [41 in]
Length clutch: 800 mm [31.5 in]
Width: 702 mm [27.6 in]
Height: 738 mm [29 in]
Weight: 476 kg



Features and benefits

  • Toyota engine base
  • Robust design
  • Compact package
  • High power density
  • Easy routine servicing
  • Installation flexiblity
  • 4 valves per cylinder
  • 2 balancing shafts
