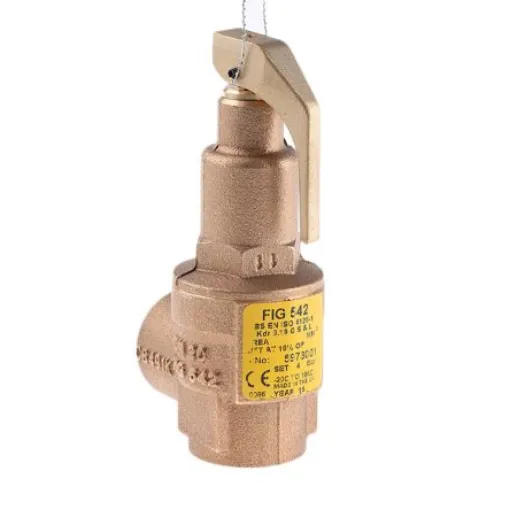

Nabic Valve Safety Products 4bar Pressure Relief Valve With Female BSP 3/4 in BSP Female Connection and a BSP 3/4 - N-542-020 4 BAR
Ensure safety with the Nabic 4bar Pressure Relief Valve, ideal for hot water boilers and steam applications.
Manufacturer part number: N-542-020 4 BAR
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Connection = 3/4 in BSP Female
Maximum Set Pressure = 4bar
Maximum Temperature = +195°C
For Use With = Air, Hot Water, Steam
Exhaust Port Size = BSP 3/4
Lockable = Yes
Body Material = Bronze
Connection Gender = Female
Thread Size = 3/4in
Thread Standard or Connection Type = BSP
NABIC Pressure Relief ValveThe NABIC 4bar 3/4in BSP female pressure relief valve is designed for the protection of hot water boilers. This valve has gunmetal construction with diaphragm-protected working parts and has PTFE to metal seating. Its wide range of applications makes it a general-purpose safety valve. It is suitable for hot water, steam and air.Features and BenefitsHigh degree of seat tightness Safe manual testing Easy inspection and cleaning Pressure setting locked and sealed Body material is bronze Maximum operating temperature is 195°CCertificationsUKWFBS approved WRC approved AOTC approved BS6759 BS21
