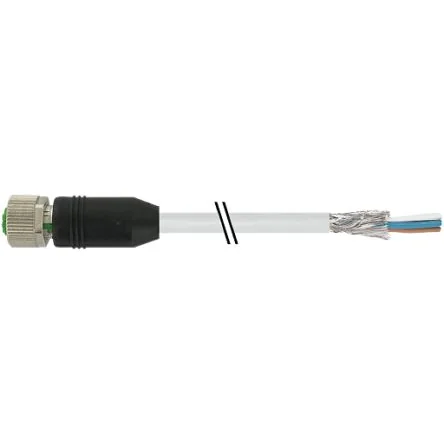

Murrelektronik Limited Straight Female 8 way M12 to Unterminated Sensor Actuator Cable, 5m - 7000-17121-2910500

The Murrelektronik black M12 female straight 5m PUR shielded cable has 8-pole with cable sleeves. It has plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application.Operating voltage max. 30 V AC/DC Operating voltage (only UL listed) max. 30 V AC/DC Rated surge voltage 0.8 kV Operating current per contact max. 2 A Coding A-coded LED display no Locking of ports Screw thread (M12x1 mm) recommended torque 0.6 Nm, self-securing Compression gland M12 (SW13) Protection IP65, IP66K, IP67 inserted and tightened (EN 60529) Material PUR Locking material Zinc die casting, matte nickel plated suitable for corrugated tube (internal Ø) 10 mm
