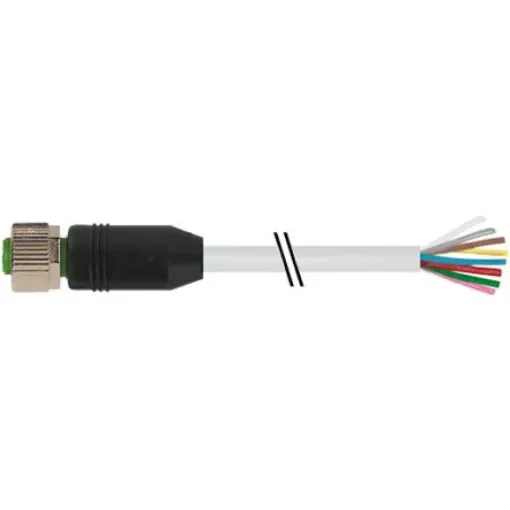

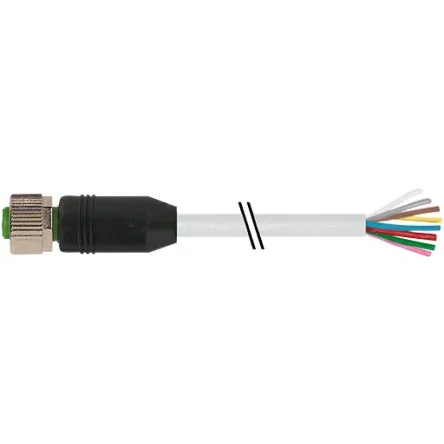

Murrelektronik Limited Straight Female 8 way M12 to Unterminated Sensor Actuator Cable, 10m - 7000-17041-2921000
Durable 10m M12 female sensor actuator cable with excellent chemical resistance.
Manufacturer part number: 7000-17041-2921000
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
The Murrelektronik black M12 female straight 10M PUR cable has 8-pole with cable sleeves. It has plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application.Operating voltage max. 30 V AC/DC Operating voltage (only UL listed) max. 30 V AC/DC Rated surge voltage 0.8 kV Operating current per contact max. 2 A Material group IEC 60664-1, category I Coding A-coded Locking of ports Screw thread (M12x1 mm) recommended torque 0.6 Nm, self-securing Compression gland M12 (SW13) Protection IP65, IP66K, IP67 inserted and tightened (EN 60529) Locking material Zinc die casting, matte nickel plated Material PUR
