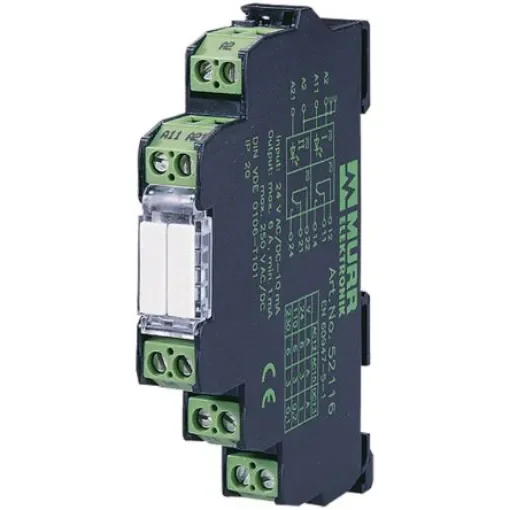

Murrelektronik Limited Interface Relay, DIN Rail Mount, 24V dc Coil, DPDT, 2-Pole, 6A Load - 52102

Manufacturer: Murrelektronik Limited

Reliable DIN rail-mounted interface relay with 24V DC coil and DPDT configuration.

Manufacturer part number: 52102

Vendor: YACHTNEEDS-RS

€42.56

Qty:

i h

Ships to: France, Monaco

Coil Voltage = 24V dc
Contact Configuration = DPDT
Mounting Type = DIN Rail
Number of Poles = 2
Load Current Rating = 6A
Maximum Input Voltage = 250V ac/dc
Terminal Type = Screw
Depth = 70mm
Height = 91mm
Length = 12.4mm
Contact Material = Silver Alloy
Input Current = 18mA
Maximum Operating Temperature = +55°C

MurrElektronik MIRO 12.4 Series Relays. MurrElektronik MIRO 12.4 series interface relay module featuring coil/contact separation and LED status indicator. The MIRO 12.4 modules are a complete relay module without the need for seperate sockets, providing a quick simple installation option. Features and Benefits. Status LED. Changeover contacts. Screw or spring clamp terminals. 35mm DIN Rail mounting
