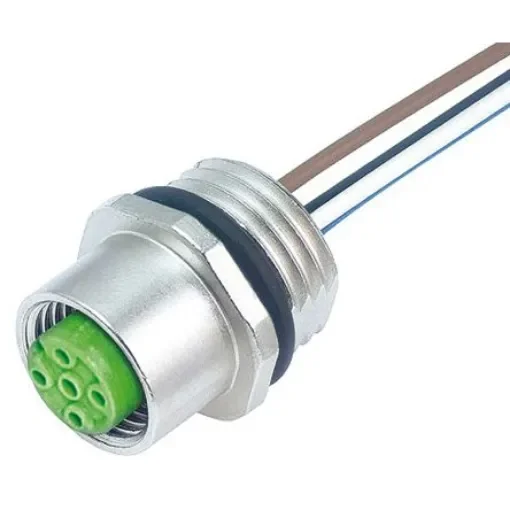

Murrelektronik Circular Connector, 4 Contacts, Bulkhead Mount, M12 Connector, Socket, Female, IP65, IP67, 7000 Series - 7000-13541-9710050

EN60529. M12 Flange Mount Bulkhead Connectors. M12 flange mount bulkhead connectors from Murr Elektronik, offered in 4 way and 5 way male and female variants with A coding and TPE wires at 0.5 metres in length. The 4 wire versions (brown, white, black and blue) and the 5 wire versions (brown, white, blue, black, grey) attached wires are multi-stranded 0.34mm ;sup>2 ;/sup>, with PP insulation. The connector contacts are rated to a maximum current capacity of 4A and with an overall operating voltage of a maximum of 250 Vac/dc for 4 way connectors and 125 Vac/dc for the 5 way M12 connector versions. These durable M12 bulkhead connectors have an IP67 rating when mated. Operating voltage 250 Vac/dc max (4 way), 125 Vac/dc (5 way) Number of wires 4 or 5 x 0.34mm ;sup>2 ;/sup> Screw thread M12x1mm IP67 once mated Operating temperature range -40 to +80 °C
