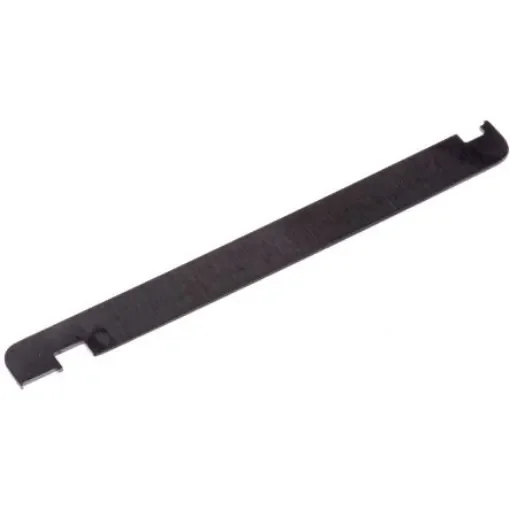

Molex Crimp Extraction Tool, HANDTOOL Series - 69008-0003

Tool Type = Extraction Tool
Series = HANDTOOL
Series Number = T0201

Molex C-Grid III Crimp Terminals - 90119 Series. C-Grid III 90119 series female crimp terminals for use in C-Grid III 90156, 90123, 90142, 90143 and 90160 series crimp housings. These C-Grid III crimp receptacles terminals have a box design and a uniform locking system that enables them to be used inside different housing styles. The contacts are made from phosphor bronze with a choice of gold or tin plating and suitable for use with wire size ranges of 24-22 AWG or 28-26 AWG. For suitable crimp tools see stock number ; 781-2728 781-2728 for 24-22 AWG terminals and ; 781-2737 781-2737 for 28-26 AWG terminals. An extraction tool (stock number ; 360-6897 360-6897 ) and an insertion tool (stock number ; 360-6881 360-6881 ) are also available. Features:. • Current Rating: 3A max • Working Voltage: 350 Vac/dc max • Contact Plating: Selective Gold over Nickel or Tin over Nickel • Insulation Material Headers: 15% Glass-filled Polyester (PBT) • Housing: Polyphenylene Oxide • Header Pin Size: 0.64 square mm • Recommended PCB Hole Diameter: 1mm . Application:. • Consumer Electronics • Commercial Vehicles
