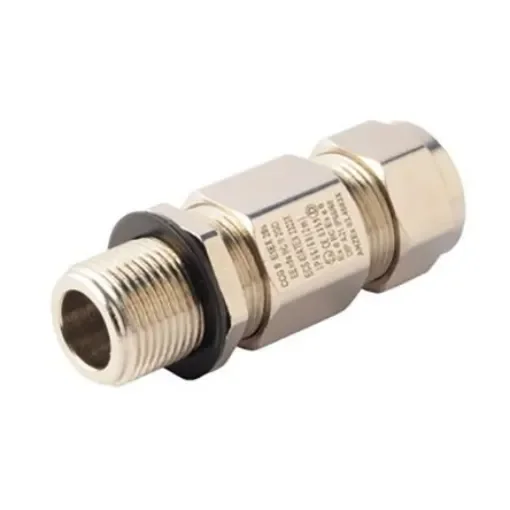

Moflash E1EX Series Metallic Stainless Steel Cable Gland, M20 Thread, 9mm min., 15mm max., IP66, IP68 - 50210

Thread Size = M20
Maximum Cable Diameter = 15mm
Minimum Cable Diameter = 9mm
Material = Stainless Steel
Colour = Metallic
Series = E1EX
IP Rating = IP66, IP68
Locknut Included = No
Hazardous Area Certification = ATEX
Maximum Operating Temperature = +95°C

ATEX, IECEx, INMETRO, SANS/IEC. E1EX Captive Component Gland for Explosive Atmospheres. The E1EX Captive Component Gland is designed for use with steel wire and aluminium armoured cable in hazardous areas with a potentially explosive atmosphere. Equipment protection levels: Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex tb IIIC Db II 2G, II 2D, II 3G. For indoor, outdoor and Group II hazardous areas Two part handling, no loose parts Captive Cone and Cone Ring provide an armour clamp and earth bond for steel wire armour and aluminium armour Patented disconnect system that allows inspection of armour clamp and inner seal after assembly Factory fitted with a specially formulated elastomeric seal for built-in safety, seals on the inner sheath of the cable to IP66 / IP68 Precision manufactured from high quality brass (marine grade electroless nickel plated) or stainless steel Complete with a sealing gasket and end cap safety gauge for correct gland selection
